Desktop Tab Welding Machine For Battery DC Cell Spot Welding
Machine
Equipment introduction
● Using self-developed precision welding head, pressure precise
adjustment and control.
● Bipolar output eliminates the welding polarity effect, makes the
energy on both sides of the welding electrode consistent, and can
effectively eliminate the phenomenon of welding sticky needle.
● In bipolar welding, welding voltage/current, flow from the left
welding pin to the right welding pin during the first weld, and
flow from the right welding pin to the left welding pin during the
second welding.
● It can be applied to bump spot welding and needle spot welding.
● It has three control modes: constant current, constant voltage,
constant current and constant voltage combination mode.
● Built-in pre-check function, which can be used to determine
whether the workpiece is energized before welding.
● The welding current of lithium battery spot welding machine can
be switched quickly and efficiently through transistors without
transformer.
● No need to weld transformer, small size, light weight, beautiful
appearance.
● The welding power supply is controlled by switching mode, which
can realize small but efficient welding and high output.
● The power supply welding current rises quickly, and high-quality
welding is realized in a short time.
● Added continuous spot welding function, effectively improve
production efficiency.
● Independent research and development of precision welding head,
precise pressure adjustment control.
● Microcomputer technology control, dynamic real-time monitoring of
welding current, voltage, power and resistance waveforms.
● 5.7 inch high-definition LED display, convenient and intuitive
adjustment of equipment parameters, can store multiple programs in
advance.
● With thickened explosion-proof glass, it protects the table from
wear during the welding process and ensures smooth welding.
● Vertical spot welding is used for welding, and the pressure depth
is manually controlled.
Technical specification
| Welding thickness | 0.02-0.5MM | Welding power supply | Bipolar transistor |
| Welding mode | Single side double point horizontal welding | Table top and weld head height | 250 (Maximum pitch adjustable) |
| Supply current | 5000A/8000A/10000A | Welding speed | 200P/M |
| Spot welding method | Bump welding/tip welding | Welding pressure | 5KG/F |
| Maximum voltage | 30V(Adjustable by oneself) | Equipment size | 600*900*1300MM |
| Driving mode | Electric | Machine Weight | 70KG |
| Power source specification | Single-phase 220V50/60HZ | Application scenarios | Battery welding |
Function Introduction
2. Pneumatic precision welding head
Horizontal welding structure, double linear guide design, left and
right pressure can be adjusted individually. Built-in pressure
sensor for precise control and application of stable pressure.

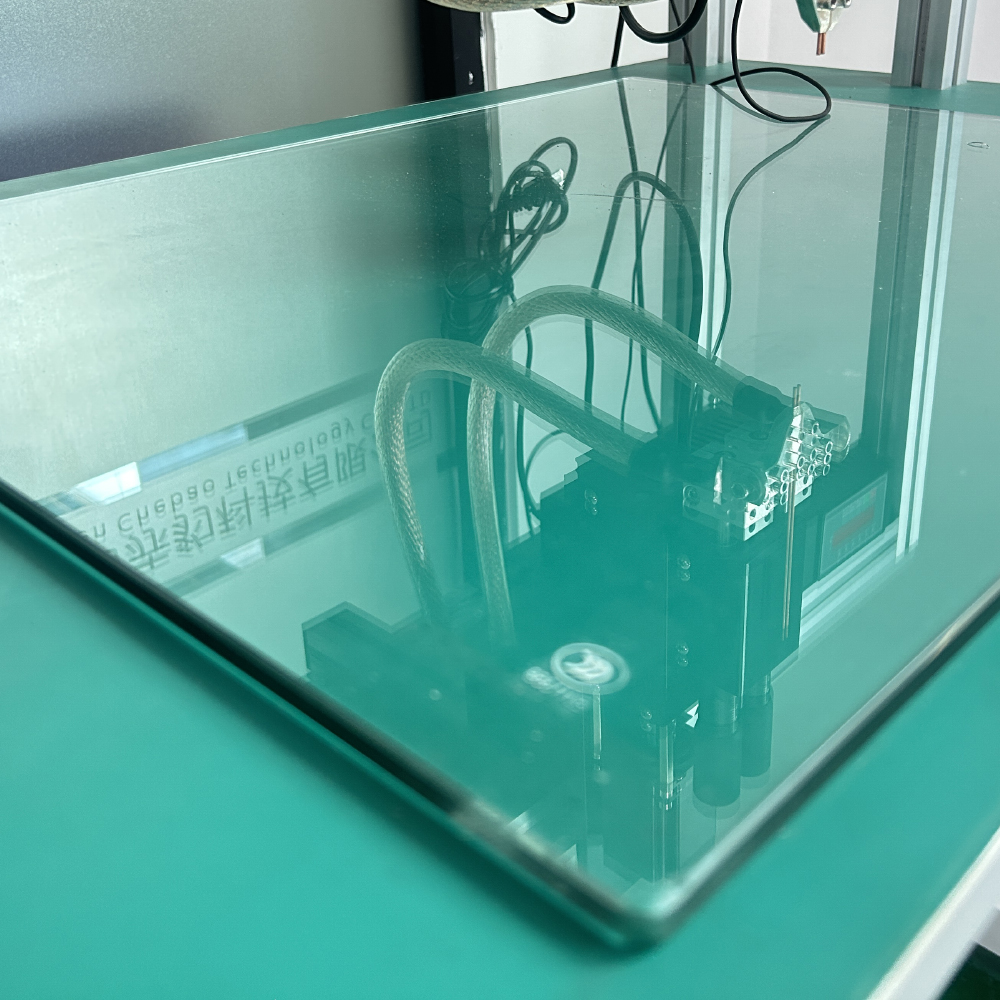

2.Thickened tempered glass
High quality explosion-proof glass is used to effectively prevent
damage to the table when welding. It can also increase the fluidity
of welding and improve the welding efficiency.
3. Bipolar transistor welding power supply
Bipolar welding, welding voltage/current, the first welding from
the left welding needle to the right welding needle, the second
welding welding energy from the right welding needle to the left
welding needle. Welding energy output the most stable power supply,
real-time display of welding voltage and current waveform, current
rise fast, can achieve high quality welding in a short time.
Welding case
