Transistor Power Supply Battery Tab Welder Lithium Battery Welding
Machine
Equipment introduction
● Welding power control adopts switch switching mode, which can
realize small, efficient and high output welding
● The rising speed of welding current is very fast, which is most
suitable for ultra-precision welding.
● The following three control modes are available :① constant
current control ② constant voltage control ③ combination control of constant current and constant voltage
● The energy stored in the capacitor is used for welding and can be
used in small power supply conditions.
● The waveform of current, voltage, power and resistance is
dynamically detected in real time.
● Automatic welding current monitoring function, can effectively
monitor welding output current, welding current exceeds the alarm
timely supplement welding.
● Precision microcomputer technology control, can save a number of
programs, free to change the call.
● Proprietary OUTPUT ENERGY OPTIMIZATION ALGORITHM, output voltage
and output current transformation is reasonable, strong welding
ability, solid solder joint, no welding, small CREmation, good
welding quality.
● Industrial circuit design, circuit safety and reliability.
Application scope of the product
Power lithium-ion battery module, 3C lithium-ion battery pack,
nickel-metal hydride battery pack, hardware small parts, electronic
and electrical
parts, wire terminals, stainless steel parts, metal jewelry, copper
products, aluminum products, etc. At the same time, it is also
suitable for product
maintenance proofing and other work.
Technical specification
| Welding thickness | 0.02-0.5MM | Welding power supply | Transistor |
| Welding mode | Single side double point horizontal welding | Table top and weld head height | 250 (Maximum pitch adjustable) |
| Supply current | 5000A/8000A/10000A | Welding speed | 200P/M |
| Spot welding method | Bump welding/tip welding | Welding pressure | 5KG/F |
| Maximum voltage | 30V(Adjustable by oneself) | Equipment size | 600*900*1300MM |
| Driving mode | Pneumatic | Machine Weight | 60KG |
| Power source specification | Single-phase 220V50/60HZ | Application scenarios | Battery welding |
Function Introduction

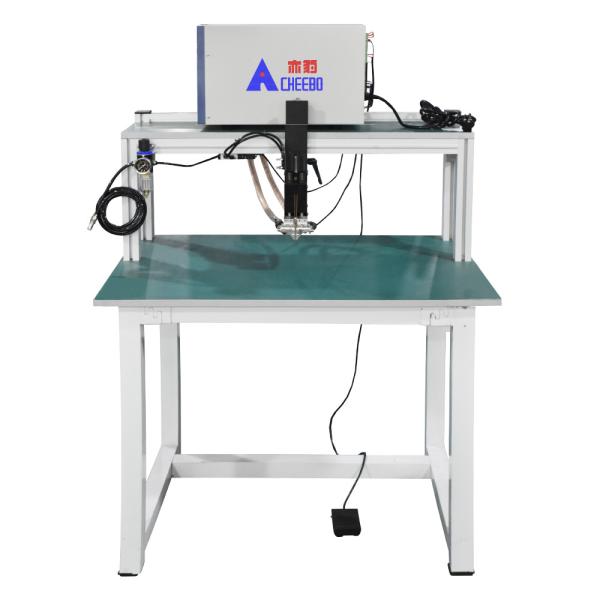

1. Pneumatic precision welding head
Horizontal welding structure, double linear guide design, left and
right pressure can be adjusted separately. Built-in pressure
sensor, precise control to apply stable pressure.
2. Adjusting mechanism of welding head
The welding head can be adjusted up and down to increase the
distance between the desktop and the welding head. Can weld a
variety of different heights, different types of cells.
3. Transistor power supply
The welding current rises very fast, achieving high quality welding
in a short time. The waveform of welding current, voltage and
resistance is dynamically and real-time detected. Built-in
pre-check function, welding work can be judged before welding
power.
Welding case
Equipment workflow
Power on -- check whether the WELED switch is turned on -- place
the product to be welded on the desktop -- Step on the foot pedal
-- push down
the welding head -- spot welding completed -- return the welding
head
FAQ
Q: What's your minimum order quantity?
A: We don't have a minimum order quantity. Whether it is an order
of 1 or 100, we will wholeheartedly support you.
Q: How do I install and run the machine?
A: Our technicians had installed the machine before shipment. For
the installation of some widgets, we will send out detailed
training videos and user manuals randomly. 95% of customers can
teach themselves.
Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery model and type.
2) Welding material and welding thickness
3) Commercial industry: We have a lot of sales experience and can
provide you with advice.
Q: How does your factory do in terms of quality control?
A: Quality comes first. More than 20 tests will be performed on
each unit. After all the tests are passed, our QC will test the
welding performance.
Q: How can I do if the machine goes wrong?
A: If you encounter such problems, please contact us as soon as
possible. Do not try to repair the machine by yourself or others.
We will respond as soon as possible within 24 hours to solve your
problem.
Service process
Pre-sale:
1. Customers send inquiries and inquiries
2. Recommend products according to customer needs
3. Video communication to confirm final requirements
4. Both parties shall deliver the confirmation of technical
specifications
5. Both parties sign the contract
6. Place orders and arrange production in the workshop
7. Arrange delivery
After sale:
1. Confirm whether customers need on-site service or video
communication guidance for debugging equipment.
2. If there is any problem with the equipment, video communication
will be adopted to solve the problem first. Door-to-door service
can be provided if there is no solution.
Looking forward to your consultation, we will provide you with the
best quality service throughout the process!!!
