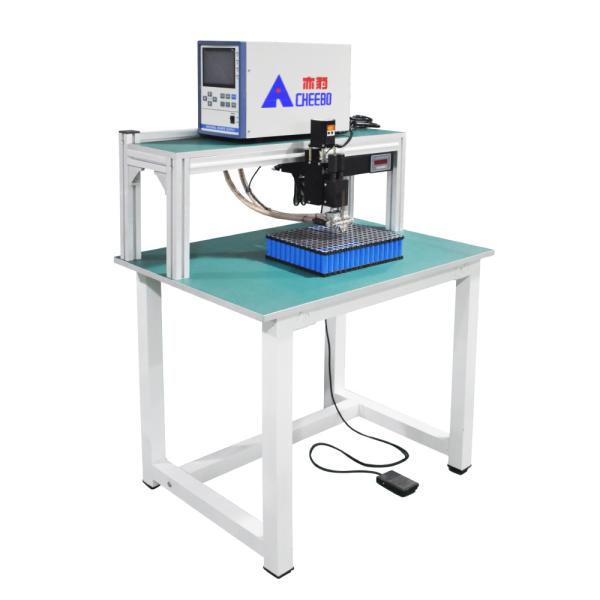

Lithium Semi Automatic Spot Welder Cylindrical 18650 Resistance
Spot Welding Machine
Lithium battery spot weld machine applicable scope
Power lithium-ion battery module assembly and welding, 3C
lithium-ion battery pack welding and assembly, nickel-metal hydride
battery pack spot
welding, hardware welding, electrical and electronic parts welding,
wire terminal welding, stainless steel welding, metal jewelry
welding, copper
products welding, aluminum products welding.
Battery pack welding machine equipment introduction
● The lithium battery spot welding machine independently developed by
cheebo is pure electric without cylinder, low noise and stable
pressure.
● The battery spot wlder is powered by a motor, accurately controlled
by a control box and adjustable in three modes.
● Lithium battery spot welding machine using transistor power supply,
power supply built-in pre-check function, before welding power can
be used to determine whether the work workpiece.
● Transistor power supply lithium battery spot welder, welding
current can be efficiently and quickly switched through the
transistor control, no transformer required.
● Self-developed precision welding head, precise pressure adjustment
control.
● 5.7 inch HD LED display, device parameter adjustment is convenient
and intuitive, multiple programs can be pre-stored.
● There are three welding modes: constant voltage, constant current
and constant voltage current combination.
● The welding power supply is controlled by switching mode, which can
realize small and efficient welding with high output.
● The welding current of the power supply rises quickly, and high
quality welding is achieved in a short time.
● The waveform of welding current, voltage, power and resistance is
dynamically and real-time monitored.
● There are three control modes: fixed current, fixed voltage, fixed
current and fixed voltage combination mode.
● Add connect point function, effectively improve production
efficiency.
● Microcomputer technology control, real-time monitoring of welding
voltage, current, resistance waveform.
Lithium ion battery welding machine technical specification
| Welding thickness | 0.02-0.5MM | Welding power supply | Transistor |
| Welding mode | Single side double point horizontal welding | Table top and weld head height | 250 (Maximum pitch adjustable) |
| Supply current | 5000A/8000A/10000A | Welding speed | 200P/M |
| Spot welding method | Bump welding/tip welding | Welding pressure | 5KG/F |
| Maximum voltage | 30V(Adjustable by oneself) | Equipment size | 600*900*1300MM |
| Driving mode | Electric | Machine Weight | 60KG |
| Power source specification | Single-phase 220V50/60HZ | Application scenarios | Battery welding |
Cylindrical battery pack spot welding machine function Introduction
1. Electric precision welding head
Motor driven welding, without the need for external solenoid valves
and cylinders, with low noise. Horizontal welding structure, double
linear guide rail design, left and right pressure can be adjusted
separately. Built in pressure sensor for precise control and stable
pressure application.
2. Transistor welding power supply
Welding energy output is the most stable power supply, real-time
display of welding voltage and current waveform, current rising
fast, can achieve high quality welding in a short time.
3. Adjusting mechanism of welding head
The welding head can be adjusted up and down to increase the
distance between the desktop and the welding head. Can weld a
variety of different heights, different types of cells.
lithium battery spot weld machine boundary dimension
Battery pack welding case
FAQ
Q: What's your minimum order quantity?
A: We don't have a minimum order quantity. Whether it is an order
of 1 or 100, we will wholeheartedly support you.
Q: How do I install and run the machine?
A: Our technicians had installed the machine before shipment. For
the installation of some widgets, we will send out detailed
training videos and user manuals randomly. 95% of customers can
teach themselves.
Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery model and type.
2) Welding material and welding thickness
3) Commercial industry: We have a lot of sales experience and can
provide you with advice.
Q: How does your factory do in terms of quality control?
A: Quality comes first. More than 20 tests will be performed on
each unit. After all the tests are passed, our QC will test the
welding performance.
Q: How can I do if the machine goes wrong?
A: If you encounter such problems, please contact us as soon as
possible. Do not try to repair the machine by yourself or others.
We will respond as soon as possible within 24 hours to solve your
problem.
Service process
Pre-sale:
1. Customers send inquiries and inquiries
2. Recommend products according to customer needs
3. Video communication to confirm final requirements
4. Both parties shall deliver the confirmation of technical
specifications
5. Both parties sign the contract
6. Place orders and arrange production in the workshop
7. Arrange delivery
After sale:
1. Confirm whether customers need on-site service or video
communication guidance for debugging equipment.
2. If there is any problem with the equipment, video communication
will be adopted to solve the problem first. Door-to-door service
can be provided if there is no solution.
Looking forward to your consultation, we will provide you with the
best quality service throughout the process!!!
