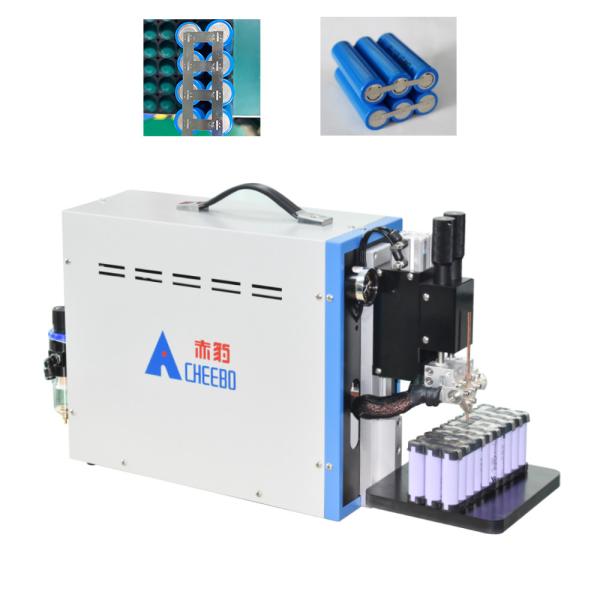

Battery Spot Welding Machine Solder Beautiful Solder Joint Solidly
Welded
Equipment introduction
● This product is a widely popular AC pulse spot welder with
microcomputer microcontroller control, stable and reliable
performance. Industrial grade welding equipment. Suitable for power
lithium-ion battery module welding, 3C lithium-ion battery pack
welding, nickel-metal hydride battery pack welding, hardware small
parts welding, electronic and electrical parts welding, wire
terminal welding, stainless steel parts welding, metal jewellery,
copper products, aluminium products and so on. It is also suitable
for product maintenance and proofing.
● Adopting single-chip control, it can realise single-pulse,
multi-pulse and double-pulse welding.
● Lithium battery welding machine adopts proprietary output energy
optimisation algorithm, reasonable output voltage and output
current conversion, strong welding capacity, firm welding joints,
correct welding, less ignition and excellent surface quality.
● Independent welding needles and spring cushion design, precise
adjustment of welding pressure.
● Welding head platform can be adjusted up and down, can weld
various specifications of batteries.
● Imported aluminium oxide copper electrode, pure copper welding
cable, pure copper electrode clamp and other high-quality
accessories, the machine is durable.
● Intelligent chip precision control, imported control chip,
microsecond corresponding chip integration process, small size, can
work for a long time, and stable operation.
● All parameters are set digitally, parameter adjustment is stable,
intuitive and accurate.
● Welding adopts vertical spot welding with adjustable pressure
depth.
● Qibao self-developed pneumatic precision welding head, with
accurate pressure adjustment control.
● Digital LED display, equipment parameters adjustment is more
intuitive, easy to learn and operate.
● Microcomputer technology control, grid voltage control, automatic
tracking compensation.
● Portable lithium battery spot welder adopts integrated design,
space-saving and easy to carry.
● Welding machine can store multiple programmes in advance, which
can be changed and recalled at will.
● Compact structure, small size, high power, large industrial
circuit design, safe and reliable welding process.
Welding case
Technical specification
| Welding thickness | 0.04-0.2MM | Welding power supply | Multiple-pulse |
| Welding mode | Single side double point horizontal welding | Table top and weld head height | 150MM (Maximum pitch adjustable) |
| Supply current | 3200A | Welding speed | 200P/M |
| Spot welding method | Bump welding/tip welding | Welding pressure | 5KG/F |
| Equipment power | 12KW | Equipment size | 640*200*360MM |
| Driving mode | Pneumatic | Machine Weight | 60KG |
| Power source specification | Single-phase 220V50/60HZ | Application scenarios | Battery welding
|
Equipment workflow
Power on -- Adjust parameters -- Place the installed battery pack
on the workbench -- step on the pedal -- the welding head starts to
move -- spot
welding is completed -- the welding head returns
Function Introduction
1. Pneumatic precision welding head
The left and right electrodes of double spot welding head are
pressed down at the same time, with high precision and adjustable.
Flexible and fast pressurization, good pressure follow-up. High
machining accuracy and small electrode inertia. The built-in local
pressure sensing device is connected to the welding controller to
ensure that the welding pressure meets the requirements every time.
2. Pressure regulation
The pressure of the welding head is adjustable from 1-10KG to
ensure good welding results of different thicknesses and materials.
3. Operation panel
LED digital display. "+", "-" to adjust the data. "#" switch to
adjust the data. Data adjustment is simple and convenient.
One-click switch button.
