10000A High Power Automatic Battery Spot Welding Machine Battery Pack Welding

Equipment introduction

​​● CHEEBO CBMN5-6040 lithium battery spot welding machine adopts double-sided spot welding at the same time, no need to connect the air source production is more efficient, but also avoid the fluctuation caused by the unstable pressure of the air source during welding, welding speed, high precision.

​​● Suitable for welding and assembly of power battery pack with nickel sheet less than 0.3MM.

​​● Transistor welding power supply, the current rising speed is fast, welding efficiency.

​​● Panasonic servo motor control, response speed, accurate and efficient control, long service life, not easy to damage.

​​● Using Taiwan silver screw guide module, high precision, low noise, smooth sliding, durable.

​​● The whole machine adopts imported parts, long service life, low damage rate.

​​● Blast welding, welding equipment automatic alarm, manual adjustment of automatic area repair welding, single point repair welding.

​​● The lithium battery spot welder has the function of manual programming and CAD mapping. The spot welding path can be quickly imported by ​​ CAD mapping to realize programming. Simple and easy to learn, production line workers can be fully competent.

​​● Automatic battery spot welder adopts HD LCD touch screen, easy to operate interactive man-machine interface.

​​● Independent development of a variety of automated intelligent systems, easy to set the running state of equipment, so that production capacity doubled.

​​● With energy switching function, production counting function, welding needle compensation function, manual debugging function.

​​● Adopt through-through design structure (both forward forward and forward back out). It is easy to connect with other assembly processes at the back end, making the assembly and production process of battery packs simpler and faster.

​​● Aluminum alloy skeleton, imported acrylic shield plate, beautiful and generous sense of science and technology, comprehensive visual operation to improve the production safety factor.

Technical specification

Function Introduction

1. Hd touch screen

Real-time display of welding data, welding hole location. System parameter setting is simple and easy to learn.
Support manual programming, CCD mapping, import solder joint path to achieve fast programming.

2. Lead screw guide

WIHIN screw guide module, high precision, low noise, smooth sliding, durable.

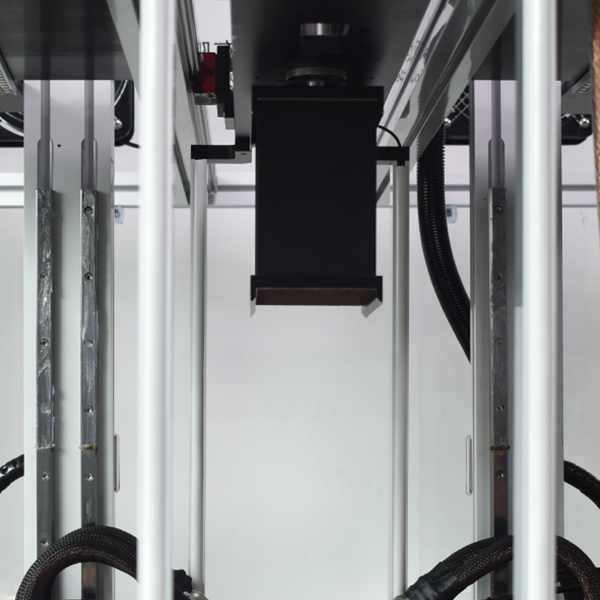

3. Electric precision welding head
No need to connect the air source, low noise. The built-in pressure sensor can monitor and control the instantaneous pressure of welding head. Precision welding head, small pressure inertia, soft pressure

Application case

1. Energy storage battery pack 2. Electric bicycle battery pack 3. Power tool battery pack

FAQ

Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.

Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.

Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.

Q: How can I do if the machine goes wrong?

A: If you encounter such problems, p

lease contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.

Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.

Service process
Pre-sale:
1. Customers send inquiries and inquiries
2. Recommend products according to customer needs
3. Video communication to confirm final requirements
4. Both parties shall deliver the confirmation of technical specifications
5. Both parties sign the contract
6. Place orders and arrange production in the workshop
7. Arrange delivery
After sale:
1. Confirm whether customers need on-site service or video communication guidance for debugging equipment.
2. If there is any problem with the equipment, video communication will be adopted to solve the problem first. Door-to-door service can be provided if there is no solution.

Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
