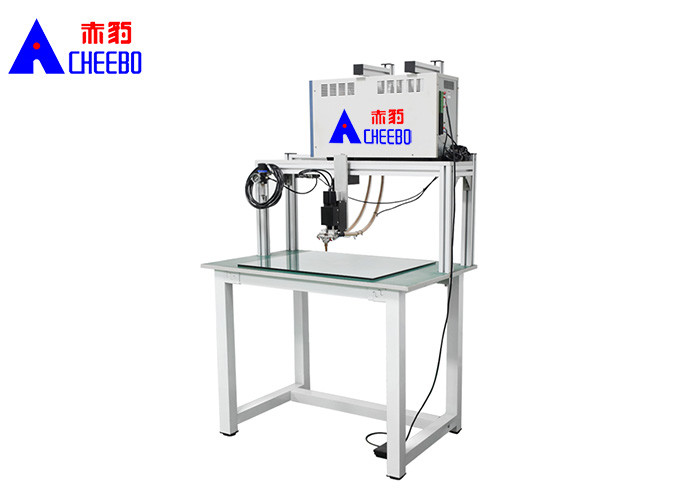

Battery Tab Spot Welding Machine Transistor Type Battery Pack Spot
Welder
Equipment features:
- The bipolar output eliminates the welding polarity effect and makes
the energy on both sides of the welding electrode consistent.
- Using the energy stored in capacitors for welding, it can also be
used in small power supply conditions.
- The welding power supply is controlled by switching mode, which can
realize small and efficient welding with high output.
- The welding current of the power supply rises fast, achieving high
quality welding in a short time.
- Microcomputer technology control, real-time monitoring of welding
voltage, current, resistance waveform.
- 5.7 "HD LED display, convenient and intuitive device parameter
adjustment, can store multiple programs.
- There are three welding modes: constant voltage, constant current
and constant voltage and current combination.
- The output current has the function of polarity switching,
effectively eliminating the polarity in the welding process.
Equipment technical parameter
| Welding mode | Single side double point balance welding |
| Welding thickness | 0.04-0.25mm |
| Supply current | 5000A |
| Spot welding mode | A raised or pointed point |
| Equipment power | 12KW |
| Driving mode | Electric/Pneumatic (optional) |
| Table top and weld head height | 250MM (maximum pitch) adjustable |
| Welding power supply | transistor |
| Welding speed | 200P/M (Max) |
| Welding pressure | 5KG/F (adjustable) |
FAQ
Q: What's your minimum order quantity?
A: We don't have a minimum order quantity. Whether it is an order
of 1 or 100, we will wholeheartedly support you.
Q: How do I install and run the machine?
A: Our technicians had installed the machine before shipment. For
the installation of some widgets, we will send out detailed
training videos and user manuals randomly. 95% of customers can
teach themselves.
Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery model and type.
2) Welding material and welding thickness
3) Commercial industry: We have a lot of sales experience and can
provide you with advice.
Q: How does your factory do in terms of quality control?
A: Quality comes first. More than 20 tests will be performed on
each unit. After all the tests are passed, our QC will test the
welding performance.
Q: How can I do if the machine goes wrong?
A: If you encounter such problems, please contact us as soon as
possible. Do not try to repair the machine by yourself or others.
We will respond as soon as possible within 24 hours to solve your
problem.
Service process
Pre-sale:
1. Customers send inquiries and inquiries
2. Recommend products according to customer needs
3. Video communication to confirm final requirements
4. Both parties shall deliver the confirmation of technical
specifications
5. Both parties sign the contract
6. Place orders and arrange production in the workshop
7. Arrange delivery
After sale:
1. Confirm whether customers need on-site service or video
communication guidance for debugging equipment.
2. If there is any problem with the equipment, video communication
will be adopted to solve the problem first. Door-to-door service
can be provided if there is no solution.
Looking forward to your consultation, we will provide you with the
best quality service throughout the process!!!
