18650 Nickel Spot Welder Foot Drive Battery Pack Spot Welder
Nickel spot welder for lithium battery equipment introduction
● CHEEBO Lithium battery spot welding machine adopts self-developed
precision welding head, accurate pressure adjustment and control.
● CBLQ-5A battery nickel welding machine does not need to welding
transformer, small size, light weight, beautiful.
● It can be applied to convex spot welding and tip spot welding.
● 18650 battery spot welding machine has three control modes:
constant current, constant pressure, constant current and constant
pressure combination mode.
● Built-in pre-check function, which can be used to judge whether
the workpiece is electrified before welding.
● The welding current of the lithium battery spot welding machine
can be switched quickly and effectively through the transistors
without
the transformer.
● Welding power supply is controlled by switch mode, which can
realize small and efficient welding with high yield.
● The welding current of the power supply rises quickly, and the
high-quality welding is realized in a short time.
● Lithium ion battery pack spot welding machine increases the
connection point function, effectively improve the production
efficiency.
● Independent research and development of precision welding head,
accurate pressure regulation and control.
● Micro computer technology control, welding current, voltage,
power, resistance waveform dynamic real-time monitoring.
● 5.7-inch HD LED display, device parameters adjustment is
convenient and intuitive, can store multiple programs in advance.
● There are three welding methods: constant voltage, constant
current and constant voltage current combination.
Spot welder for lithium battery technical specification
| Welding thickness | 0.02-0.5MM | Welding power supply | Transistor |
| Welding mode | Single side double point horizontal welding | Table top and weld head height | 250 (Maximum pitch adjustable) |
| Supply current | 5000A/8000A/10000A | Welding speed | 200P/M |
| Spot welding method | Bump welding/tip welding | Welding pressure | 5KG/F |
| Maximum voltage | 30V(Adjustable by oneself) | Equipment size | 600*900*1300MM |
| Driving mode | Pneumatic | Machine Weight | 60KG |
| Power source specification | Single-phase 220V50/60HZ | Application scenarios | Battery welding |

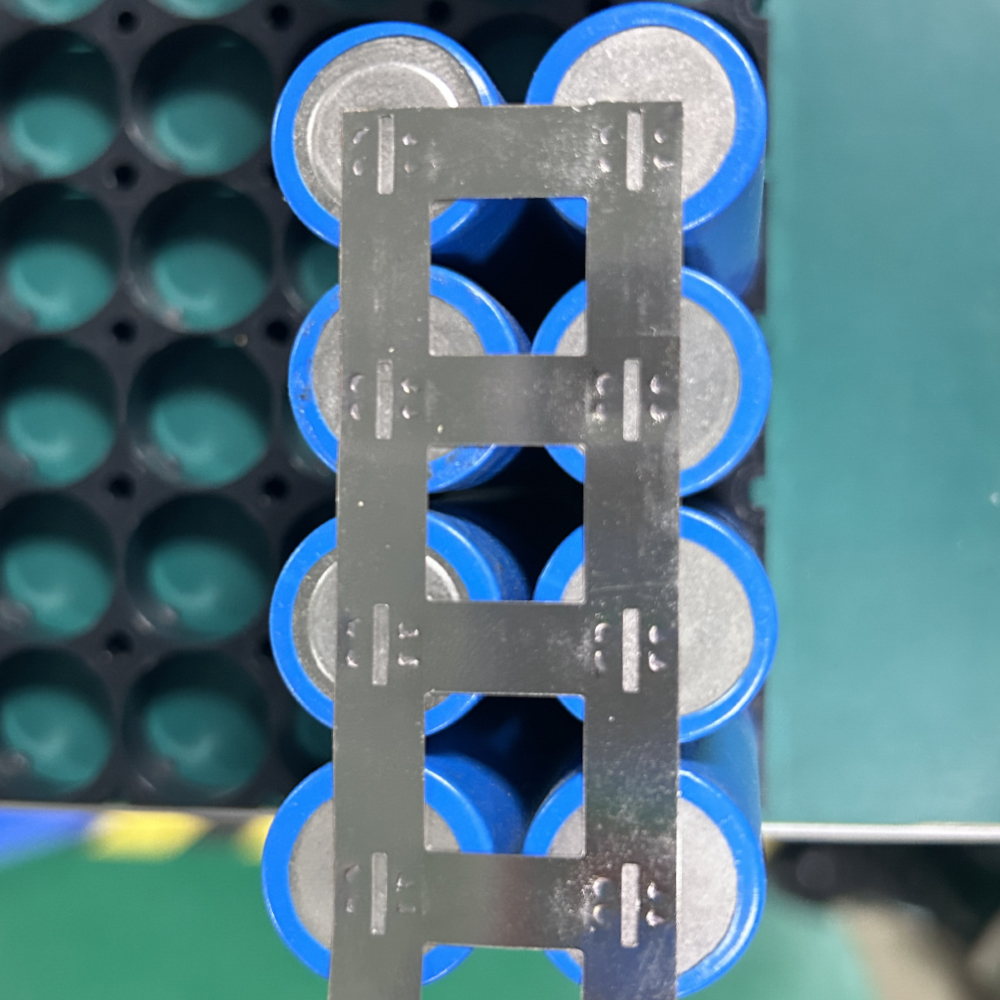

Battery pack welding case
Battery pack spot welder function Introduction
1. Thick cable
Thick pure copper cable, low resistance wire, large carrying
capacity, thick enough, welding no heat current no loss transmitted
to the welding head, to ensure welding current.
2. Pneumatic precision welding head
Horizontal welding structure, double linear guide design, left and
right pressure can be adjusted separately. Built-in pressure
sensor, precise control to apply stable pressure.

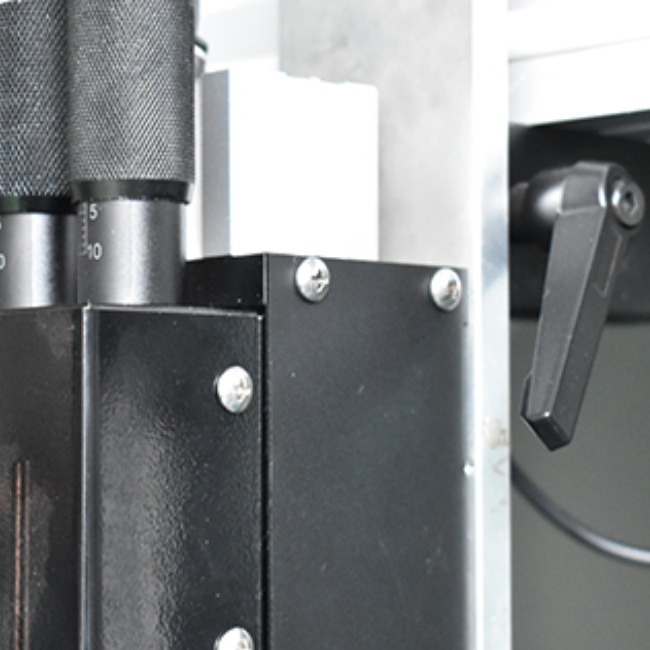

2. Adjusting mechanism of welding head
The welding head can be adjusted up and down to increase the
distance between the desktop and the welding head. Can weld a
variety of different heights, different types of cells.
Device action flow description
Power on -- Check whether the WELED switch is on -- Turn on the
power of the motion control system -- Turn on the welding head
action --
find the origin position -- place the product to be welded on the
desktop -- Step on the pedal -- push down the welding head --
spot welding is completed -- return the welding head
FAQ
Q: What's your minimum order quantity?
A: We don't have a minimum order quantity. Whether it is an order
of 1 or 100, we will wholeheartedly support you.
Q: How do I install and run the machine?
A: Our technicians had installed the machine before shipment. For
the installation of some widgets, we will send out detailed
training videos and user manuals randomly. 95% of customers can
teach themselves.
Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery model and type.
2) Welding material and welding thickness
3) Commercial industry: We have a lot of sales experience and can
provide you with advice.
Q: How does your factory do in terms of quality control?
A: Quality comes first. More than 20 tests will be performed on
each unit. After all the tests are passed, our QC will test the
welding performance.
Q: How can I do if the machine goes wrong?
A: If you encounter such problems, please contact us as soon as
possible. Do not try to repair the machine by yourself or others.
We will respond as soon as possible within 24 hours to solve your
problem.
Service process
Pre-sale:
1. Customers send inquiries and inquiries
2. Recommend products according to customer needs
3. Video communication to confirm final requirements
4. Both parties shall deliver the confirmation of technical
specifications
5. Both parties sign the contract
6. Place orders and arrange production in the workshop
7. Arrange delivery
After sale:
1. Confirm whether customers need on-site service or video
communication guidance for debugging equipment.
2. If there is any problem with the equipment, video communication
will be adopted to solve the problem first. Door-to-door service
can be provided if there is no solution.
Looking forward to your consultation, we will provide you with the
best quality service throughout the process!!!
