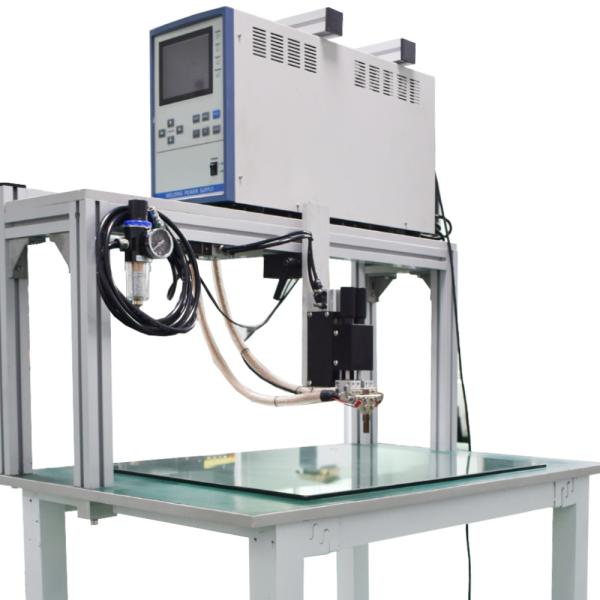

Table Type Lithium Battery Tab Spot Welding Machine 5000A Bipolar
Power Supply
Equipment introduction
● Adopt self-developed precision welding head, with accurate
pressure adjustment and control.
● Bipolar output eliminates the welding polarity effect, makes the
energy on both sides of covered electrode consistent, and can
effectively eliminate the phenomenon of needle sticking.
● In bipolar welding, the welding voltage/current flows from the
left needle to the right needle during the first welding, and the
welding energy flows from the right needle to the left needle
during the second welding.
● It can be applied to bump welding needle or sharp spot welding
needle for welding.
● There are three control modes: constant current, constant
voltage, constant current and constant voltage combination mode.
Built-in pre-inspection function can be used to judge whether the
workpiece is electrified before welding.
● The welding current of spot welding machine for lithium battery
can be quickly and effectively switched by transistor without
transformer.
● No need to weld transformer, small size, light weight and
beautiful appearance.
● The welding power supply is controlled by switch mode, which can
realize small and efficient welding and high output.
● The welding current of power supply rises quickly, which can
realize high-quality welding in a short time.
● Increase the function of continuous spot welding to effectively
improve production efficiency.
● Independent research and development of precision welding head,
precise pressure adjustment and control.
● Controlled by microcomputer technology, welding current, voltage,
power and resistance waveform can be dynamically monitored in real
time.
● 5.7-inch high-definition LED display, convenient and intuitive
adjustment of equipment parameters, and multiple programs can be
stored in advance.
● Thicken explosion-proof glass to protect the desktop from
abrasion during welding and ensure smooth welding.
● Vertical spot welding is adopted for welding, and the press-in
depth is controlled manually.
Equipment workflow
Power on - display 600 OE self-test screen - press the up arrow to
enter the system - Place the product to be welded on the table -
pedal -
press the welding head - spot welding completed - welding head
return
Technical specification
| Welding thickness | 0.02-0.5MM | Welding power supply | Bipolar transistor |
| Welding mode | Single side double point horizontal welding | Table top and weld head height | 250 (Maximum pitch adjustable) |
| Supply current | 5000A/8000A/10000A | Welding speed | 200P/M |
| Spot welding method | Bump welding/tip welding | Welding pressure | 5KG/F |
| Maximum voltage | 30V(Adjustable by oneself) | Equipment size | 600*900*1300MM |
| Driving mode | Electric | Machine Weight | 60KG |
| Power source specification | Single-phase 220V50/60HZ | Application scenarios | Battery welding |
Function Introduction
1.Pneumatic precision welding head
Horizontal welding structure, double linear guide design, left and
right pressure can be adjusted separately. Built-in pressure
sensor, precise control to apply stable pressure.
2.Adjusting mechanism of welding head
The welding head can be adjusted up and down to increase the
distance between the desktop and the welding head. Can weld a
variety of different heights, different types of cells.
3.Cylinder drive
The air source interface is connected to the pressure regulator to
adjust the air source pressure and filter the water. The gas is
sent to the solenoid valve, which controls the gas drive cylinder
and drives the welding head.
FAQ
Q: What's your minimum order quantity?
A: We don't have a minimum order quantity. Whether it is an order
of 1 or 100, we will wholeheartedly support you.
Q: How do I install and run the machine?
A: Our technicians had installed the machine before shipment. For
the installation of some widgets, we will send out detailed
training videos and user manuals randomly. 95% of customers can
teach themselves.
Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery model and type.
2) Welding material and welding thickness
3) Commercial industry: We have a lot of sales experience and can
provide you with advice.
Q: How does your factory do in terms of quality control?
A: Quality comes first. More than 20 tests will be performed on
each unit. After all the tests are passed, our QC will test the
welding performance.
Q: How can I do if the machine goes wrong?
A: If you encounter such problems, please contact us as soon as
possible. Do not try to repair the machine by yourself or others.
We will respond as soon as possible within 24 hours to solve your
problem.
