Battery Pack Nickel Plate Welding Automatic Battery Spot Welding Machine

● Automatic lithium battery spot welding machine, using self-developed electric precision rotary welding head, can rotate 135° for welding, suitable for all kinds of irregular nickel sheets, with anti-stick needle effect.

● CBMN8-5036 double-sided lithium battery spot welding machine can operate independently on the left and right platforms, and the welding path can be set independently according to different welding needs.

● CBMN8-5036 8-axis lithium battery spot welding machine has the function of automatically detecting whether the fixture is in place.

● Automatic alarm of explosion welding and virtual welding equipment, automatic area repair welding, single point repair welding manual adjustment.

● Install the origin reset function, that is, due to abnormal problems in the spot welding process caused by shutdown, you can manually return to the original point, open the break point processing, and weld from the previous welding position when starting again.

● With the breakpoint processing function, if the spot welding process breaks the point, turn it on again to continue the spot welding from the last spot welding position, or manually enter the current spot welding position in the interface to start the automatic continuation function.

● The equipment adjustment touch screen adopts a flexible wiring harness method, which can be stretched and moved to the debugging position for debugging, and can be attached to a fixed position during normal production

● With the pin management function, you can control the service life of the welding pin and the number of uses.

● 16 sets of spot welding conditions can be set, suitable for welding of different materials.

● Using HIWIN module, high precision, low noise, smooth sliding and durable.

● It adopts a through-type design structure (that is, forward front out, or forward and backward out), which can be directly connected to the production line for use. After the welding is completed, it can be taken out on the side of the production line.

● The lithium-ion battery assembly equipment adopts high-definition LCD touch screen, and the human-computer interaction interface is simple and easy to operate. Manual programming, CAD drawing, import of spot welding paths, fast programming. Easy to learn, ordinary workers can set up.

● Aluminum alloy skeleton, imported acrylic protection plate, beautiful and generous, strong sense of science and technology, visual operation to improve the production safety factor.

The battery cell/bracket/battery nickel piece is loaded into the fixture -- the fixture is placed in the sensing position -- the device automatically spot

-welds the device to the extraction position (select the discharge method: forward forward out, forward forward out) -- the battery pack is removed

from the fixture -- and the next production cycle is carried out

1. Electric rotating welding head

The welding head can be welded by 135° rotation, suitable for special-shaped nickel sheet, and also has the function of anti-sticking needle.

The built-in pressure sensor can monitor and control the instantaneous output pressure of the welding head.

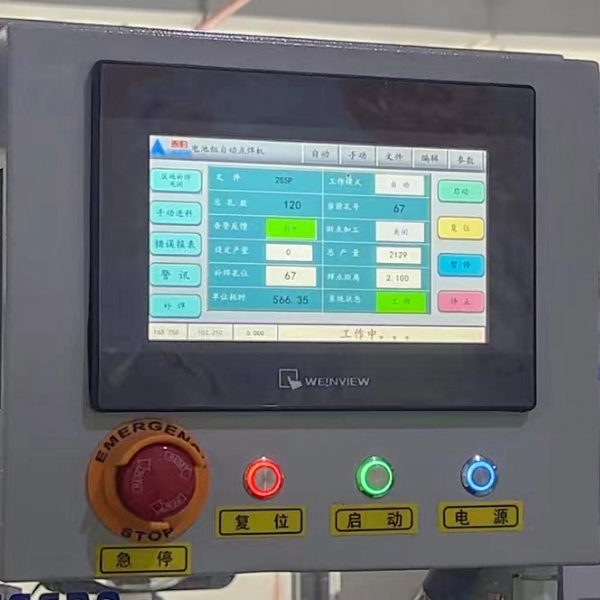

2. Hd touch screen

Real-time display of welding data, welding hole location. System parameter settings are easy to learn. Support manual programming, CAD maps, import solder joint paths, for fast programming.

3. Transistor welding power supply

Welding energy output is the most stable power supply, real-time display of welding voltage and current waveform, current rising fast, can achieve high quality welding in a short time.

1. The same battery pack (manual programming) can only be horizontal spot welding or vertical spot welding, and can not have both horizontal and vertical spot welding in the same group of batteries. (If multiple spot welding specifications are required, please do CAD programming.)
2. The same battery pack can only choose flat pin spot welding or convex spot welding
3. In a battery pack, the spot welding surface must be flush and of the same height
4. Clean the end face of the spot welding needle regularly
5. The whole machine adopts computer control system. Do not link USB device and Internet at will to prevent data loss

1. Energy storage battery pack 2. Electric bicycle battery pack 3. Power tool battery pack

Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.

Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.

Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.

Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.

Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
