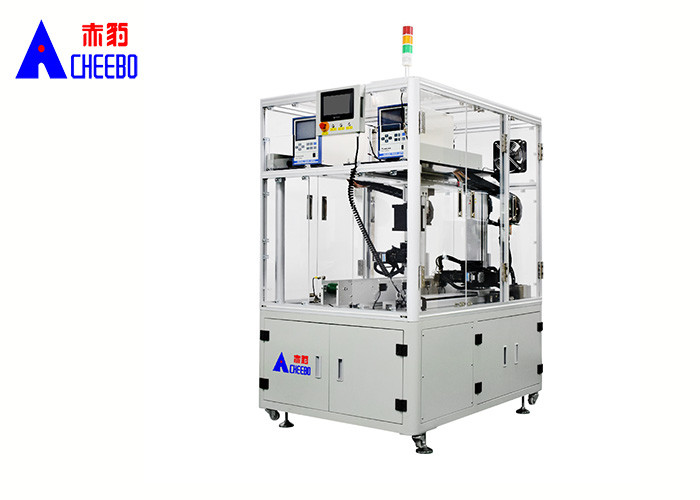

Cylindrical Automatic Battery Spot Welding Machine 18650 Double
Sided
Equipment features:
- An automatic double-sided welding equipment developed to improve
production efficiency can weld 3600 cells in one hour.
- Welding head can be 135° rotating welding, double platform
independent operation, suitable for all kinds of special shape
nickel sheet.
- Blast welding, welding equipment automatic alarm, manual adjustment
of automatic area repair welding, single point repair welding.
- Hd LCD touch screen, interactive man-machine interface is easy to
operate.
- Manual programming, CAD map, import spot welding path, fast
programming. Simple and easy to learn, production line workers can
be fully competent.
- Energy switching function, can store 4 groups of energy mode,
automatically switch different materials using different energy
welding.
- Production count function, set production quantity, complete output
automatically stop.
- Welding needle compensation function, set the number of welding
needles, after reaching the number of automatic reminding of needle
maintenance.
- Manual debugging function can fine-tune the welding head for each
point and save the spot welding parameters (easy to modify the
coordinates of the welding spot), and can also use the one-button
correction function to adjust.
- Adopt through-type design structure (can be forward forward or
forward after out), can be connected with the production line
through the use, after the completion of welding in the pipeline
side can be taken out.
- Aluminum alloy skeleton, imported acrylic shield plate, beautiful
and generous sense of science and technology, visual operation to
improve the production safety factor.
| Equipment technical parameter |
| Device name | CBWX-5036 eight axis rotating double sided spot welder |
| Production efficiency | 3600PCS/H |
| Welding thickness | 0.02-0.3 (depending on power supply selection) |
| Power supply specification | 220V50/60 Hertz |
| Power consumption | 0.8KW in busy hours and 0.2KW in idle hours |
| Welding power supply | Transistor |
| Mode of movement | Automatic continuity |
| Cooling mode | Forced water circulation cooling |
| Equipment travel | 600*400(mm) |
| Electrode material | Copper alumina |
| Overall dimension | 1400*1000*1680mm |
| Equipment weight | 330KG |
| Application scenario | Cylindrical battery mass welding, special nickel sheet welding |

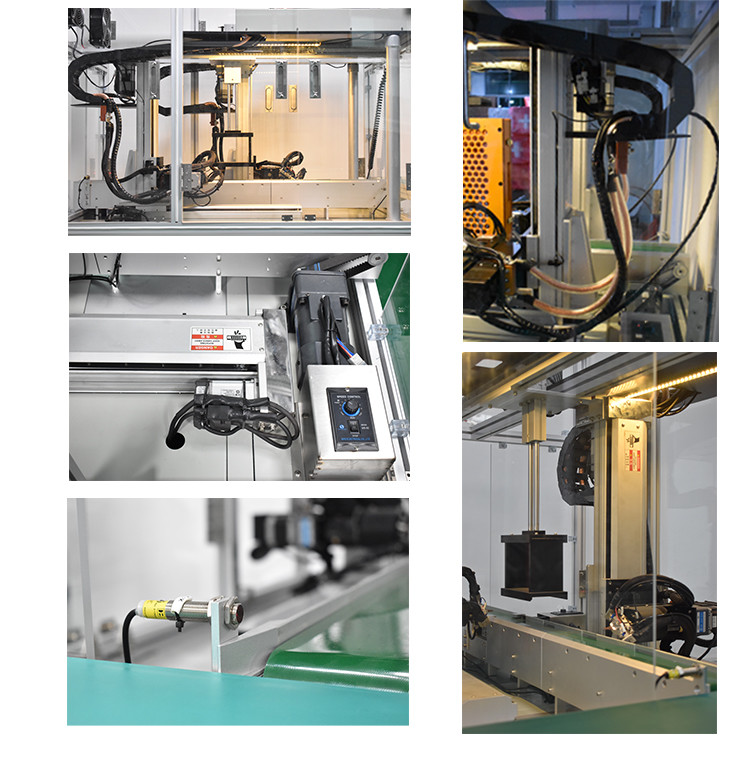

Details and finished product display
Company profile
Exhibition activity
Partial partners
Service process
Packing and transportation
Q&A
1. Who are We?
We are Shenzhen cheebo Technology Co., LTD., headquartered in
Shenzhen, China, is a professional engaged in resistance welding
technology and automatic welding equipment research and
development, production, sales, service as one of the high-tech
enterprises. The company has a strong level of innovation and
technology and product development ability, since the establishment
of independent research and development of dozens of products,
best-selling domestic and foreign markets. The company has a total
of 31-50 employees.
2. How can we ensure quality?
Pre-production of samples prior to mass production, final
inspection and video recording before delivery.
3. What can you buy from us?
Lithium battery automatic production line, battery spot welding
machine, pen pad spot welding machine, battery sorter, battery
positive electrode paste insulator paper, battery comprehensive
tester, battery CCD polarity detection equipment
4. Why should you buy from us instead of other suppliers?
We have a strong technology research and development team, has more
than 20 years of industry research and development, production and
service experience. Adopt modular design, customer customized
production, to meet the different needs of customers, to provide
customers with high-quality, safe, environmental protection, high
efficiency, energy saving products and services. The company has a
variety of specifications and models of mechanical equipment, a
variety of series to choose from.
