Equipment introduction

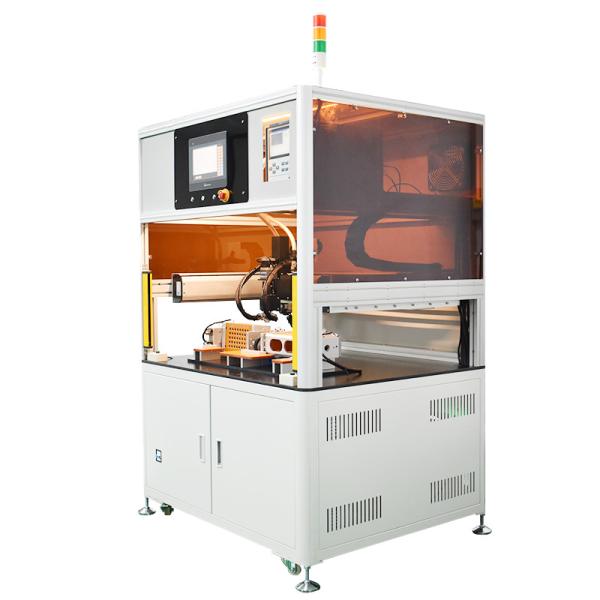

● This lithium battery spot welder is a multi-axis control machine
developed by modern automation experts, with precision transmission
and motor control mechanism, self-propelled travel mechanism, and
automatic production equipment for effective real-time control
processing.
● It is suitable for fully automatic single-sided spot welding of
18650, 21700, 26650, 32700 and other cylindrical cell combinations.
● CBMO4-1710 Li-ion battery welding single-sided machine adopts the
design of welding fixture which can be turned over automatically
after the A side welding is finished, and it can be turned over to
B side welding automatically without the need of turning over the
fixture manually.
● CHEEBO battery core welding head automatic spot welder can rotate
135°, which is suitable for welding irregular shaped nickel pieces
and effectively avoiding needle staining during welding.
● Grid protection device is installed on both sides to ensure the
safe operation of the equipment.
● Fry welding and false welding equipment will automatically alarm,
automatic area fill welding, single point fill welding manual
adjustment.
● Using Taiwan silver wire guide module, high precision, low noise,
smooth and durable sliding.
● Adopt Panasonic servo, fast welding speed and high precision.
● High-definition LCD touch screen, man-machine interaction
interface, easy and convenient operation.
● Independent development of various automatic intelligent systems
to facilitate equipment operation and help improve production
efficiency.
● With energy switching function, production counting function,
weld pin compensation function, manual debugging function, etc. It
can assist in the intelligent operation of the equipment.
● Manual programming, CAD drawing, import of spot welding paths,
and quick programming. Easy to learn and fully competent for
production line workers.
● Aluminum alloy structure, electrostatic powder coating process,
scratch resistant, rust proof and anti-static.
● Imported acrylic protection plate, beautiful and elegant, strong
sense of technology, intuitive operation, improve production safety
factor.
Welding case
Technical specification
Comprehensive time limit | 3200PCS/H |
Equipment weight | 350KG |
Weld thickness | 0.3mm(More than 0.2 nickel pieces need to be slotted and dotted) |
Device power | 220V50/60HZ |
Equipment power | 2KW (including power supply) |
Equipment travel | 170*100 (mm) about 45 18650 cells(One work station) |
Power consumption | 0.8KW in busy time, 0.2KW in idle time |
Way of exercise | automatic continuous |
Electrode material | Alumina copper |
Cooling method | Forced water circulation cooling |
Dimensions | 1000*1200*1750(mm) |
Application scenarios | Mass welding of cylindrical batteries, welding of special-shaped
nickel sheets for power tools |
Function Introduction
1. Precision servo welding head
The welding head can be rotated 135°. Suitable for all kinds of shaped nickel sheet, effectively prevent
sticking needle and other bad welding phenomenon, welding head
pressure can be adjusted.
2. Double station rotating platform
The fixture automatic rotating mechanism is adopted. After the
welding of side A, it automatically rotates to welding of side B
without manual turnover. Provide productivity.
3. Hd touch screen
Real-time display of welding data, welding hole location. System
parameter setting is simple and easy to learn.
Support manual programming, CCD mapping, import solder joint path
to achieve fast programming.
