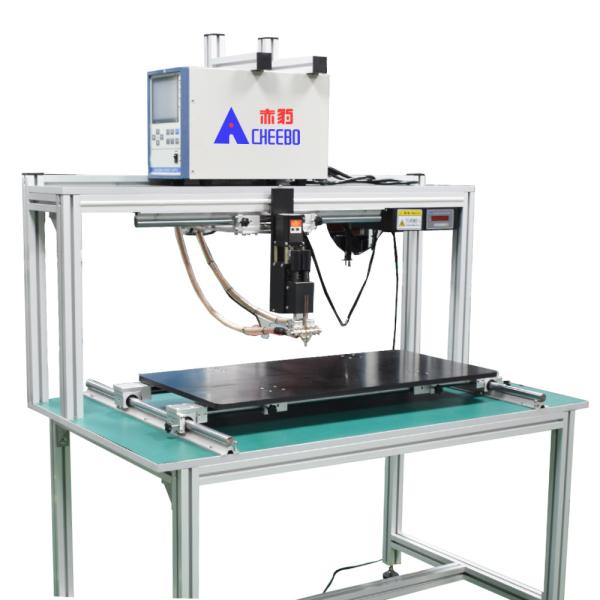

Rail Model Lithium Battery Spot Welder Large Battery Pack Welding

Application scope of the product

Power lithium ion battery module welding, 3C lithium ion battery pack welding, nickel metal hydride battery pack welding, hardware welding,

electrical and electronic parts welding, wire terminal welding, stainless steel welding, metal jewelry welding, copper products welding, aluminum

products welding. At the same time, it is also suitable for product maintenance proofing and other work.

Equipment introduction

​​● Pure electric no cylinder, low noise, fast speed, stable pressure.

​​● Independently developed precision welding head, the pressure can be accurately adjusted and controlled according to the thickness and material of nickel sheet to achieve precision welding.

​​● Transistor welding power supply, current rise fast, short time to achieve high quality welding.

​​● There are three welding modes: constant voltage, constant current and constant voltage current.

​​● Compact structure, small size, large power, no need to weld transformers.

​​● Microcomputer technology control, real-time monitoring of welding voltage, current, resistance waveform.

​​● 5.7 inch HD LED display, device parameter adjustment is convenient and intuitive, multiple programs can be pre-stored.

​​● Double guide rail thickening, the chassis is stable and firm, not easy to deformation.

​​● Welding The welding head can be moved up and down, and the welding head can be moved according to the size of the battery pack for easy welding.

​​● The table guide rail can be pushed and pulled left and right, and the stroke is 750*350mm.

​​● The spot welding process does not need to push the battery pack, saving energy and fast, the platform can carry 60KG, especially suitable for large battery pack welding.

​​● The guide rail is convenient to move, saving time and labor, greatly shortening welding time and improving manual welding speed.

​​● Energy saving and environmental protection, stable and efficient, low power consumption of equipment.

Technical specification

• Welding precautions

1. Keep the distance between the end face of the welding needle and the end face of the battery 3 to 5MM.

2. For the battery specifications in a battery pack, the spot welding surface must be flush and the height as consistent as possible.

3. Clean the end face of the spot welding needle regularly.​

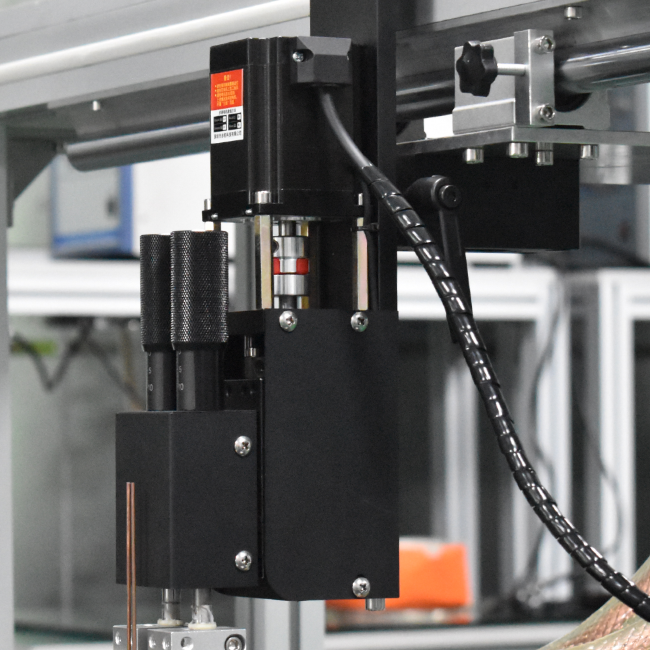

1. Electric precision welding head

Horizontal welding structure, double linear guide design left and right pressure can be adjusted separately. Built-in pressure sensor, precise control to apply stable pressure. The welding head is equipped with a guide rail, which can move left and right for easy welding.

2. Electric control

No additional air source, low noise, fast welding speed, stable pressure.

3. Guide rail design

Double guide rail thickening design, the chassis is stable and firm, not easy to deformation. The guide rail can move left and right, and the welding head part is also equipped with a guide rail design, which is suitable for large battery assembly and welding, saving time and effort.

Service process
Pre-sale:
1. Customers send inquiries and inquiries
2. Recommend products according to customer needs
3. Video communication to confirm final requirements
4. Both parties shall deliver the confirmation of technical specifications
5. Both parties sign the contract
6. Place orders and arrange production in the workshop
7. Arrange delivery
After sale:
1. Confirm whether customers need on-site service or video communication guidance for debugging equipment.
2. If there is any problem with the equipment, video communication will be adopted to solve the problem first. Door-to-door service can be provided if there is no solution.

FAQ

Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.

Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.

Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.

Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.

Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.

Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
