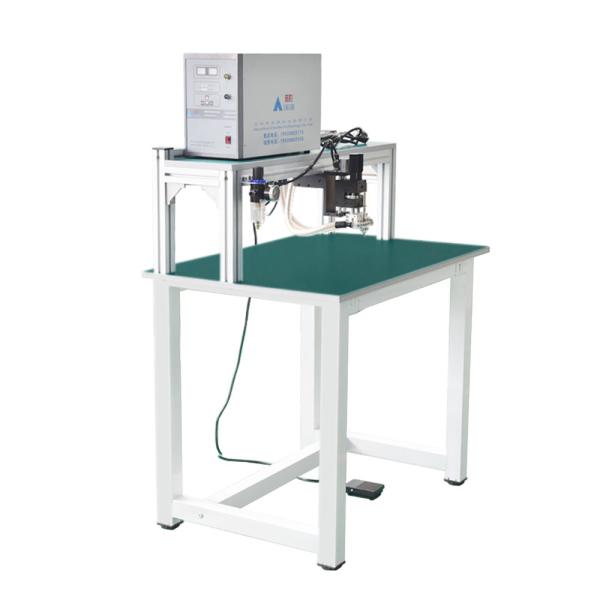

Pneumatic 18650 Lithium Battery Spot Welder Precision Welding Head
Product application
Power lithium-ion battery module welding, 3C lithium-ion battery
pack welding, nickel-metal hydride battery pack welding, hardware
accessories
welding, electronic and electrical accessories welding, wire
terminal welding, stainless steel accessories welding, metal
jewelry welding, copper
products welding, aluminum products welding, etc.
Equipment introduction
● Digital LED display, the parameter adjustment of the equipment is
more intuitive, easy to learn and operate.
● Self-developed precision welding head, precise pressure
adjustment control.
● Proprietary output energy optimization algorithm, reasonable
output voltage and output current conversion, strong welding
ability, firm solder joint, no virtual welding, small cremation,
good surface quality.
● Microcomputer technology control, control grid voltage, automatic
tracking compensation.
● APPLICABLE BATTERY SPECIFICATIONS: MINIMUM NOT LESS THAN 50MM,
MAXIMUM NOT MORE THAN 130MM. (More than can be used to increase
height)
● High-quality tempered glass is used to protect the table top from
wear during the welding process.
● Vertical spot welding is adopted to manually control the depth of
pressure.
● The welding machine can store multiple programs in advance, which
can be changed and called at will.
● Compact structure, small size, high power, large industrial
circuit design, safe and reliable welding process
Technical specification
| Welding thickness | 0.02-0.18MM | Welding power supply | Multiple-pulse |
| Welding mode | Single side double point horizontal welding | Table top and weld head height | 130MM (Maximum pitch adjustable) |
| Supply current | 3000A | Welding speed | 180P/M |
| Spot welding method | Bump welding/tip welding | Welding pressure | 5KG/F |
| Equipment power | 12KW | Equipment size | 600*900*1300MM |
| Driving mode | Electric | Machine Weight | 60KG |
| Power source specification | Single-phase 220V50/60HZ | Application scenarios | Battery welding
|
Function Introduction
1. Multi-pulse welding power supply
Proprietary output energy optimization algorithm, output voltage
and output current transformation is reasonable, strong welding
ability, solid solder joint, no virtual welding, small cremation,
excellent surface quality.
2. Explosion-proof tempered glass
High quality tempered glass protects the table top from abrasion
during welding. Ensure smooth and smooth welding process.
3. Cylinder drive
The air source interface is connected to the pressure regulator to
adjust the air source pressure and filter the water. The gas is
sent to the solenoid valve, which controls the gas drive cylinder
and drives the welding head.
Welding case
Equipment workflow
Power on - display 600 OE self-test screen - press the up arrow to
enter the system - Place the product to be welded on the table -
pedal -
press the welding head - spot welding completed - welding head
return
Apparent dimension
FAQ
Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery model and type.
2) Welding material and welding thickness
3) Commercial industry: We have a lot of sales experience and can
provide you with advice.
Q: How do I install and run the machine?
A: Our technicians had installed the machine before shipment. For
the installation of some widgets, we will send out detailed
training videos and user manuals randomly. 95% of customers can
teach themselves.
Q: What's your minimum order quantity?
A: We don't have a minimum order quantity. Whether it is an order
of 1 or 100, we will wholeheartedly support you.
Q: How does your factory do in terms of quality control?
A: Quality comes first. More than 20 tests will be performed on
each unit. After all the tests are passed, our QC will test the
welding performance.
Q: How can I do if the machine goes wrong?
A: If you encounter such problems, please contact us as soon as
possible. Do not try to repair the machine by yourself or others.
We will respond as soon as possible within 24 hours to solve your
problem.
