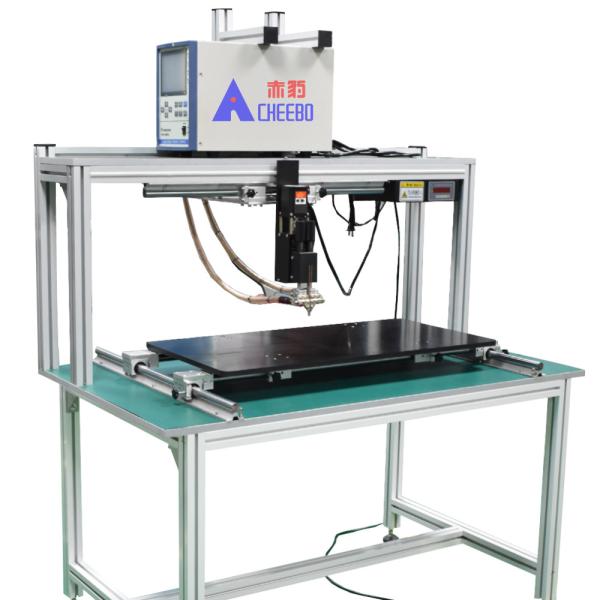

Stable Pressure Battery Tab Spot Welding Machine With Nickel Plate
Equipment introduction
● Purely electric without cylinder, low noise, fast speed and
stable pressure
● Double guide rails thickened and thickened to ensure stable and
firm chassis, not easy to deformation.
● The welding head can move up and down, left and right, and can
move according to the size of the battery pack, which is convenient
for welding.
● Self-developed precision welding head with precise pressure
adjustment and control.
● Desktop guide rail can be pushed and pulled back and forth with a
stroke of 750 * 350mm.
● The guide rail is easy to move, saving time and effort, greatly
reducing welding time and increasing manual welding speed.
● The spot welding process does not need to push the battery pack,
saving energy and speed. The platform can carry a load of 50KG,
which is especially suitable for welding large battery packs.
● Transistorized welding power supply with fast current rise,
achieving high quality welding in a short time.
● There are three types of welding modes: constant voltage,
constant current and constant voltage current.
● Compact structure, small volume, high power, no need of welding
transformer.
● Controlled by microcomputer technology, real-time monitoring of
welding voltage, current and resistance waveform.
● 5.7" HD LED display, easy and intuitive to adjust equipment
parameters, and multiple programs can be pre-stored.
● Energy-saving and environmental protection, stable and efficient,
low power consumption of the equipment.
Welding case
Technical specification
| Welding mode | Single side double point horizontal welding | Table top and weld head height | 250 (Maximum pitch adjustable) |
| Welding thickness | 0.02-0.5MM | Welding power supply | Transistor |
| Supply current | 5000A*8000A*10000A | Welding speed | 180P/M |
| Spot welding method | Bump welding/tip welding | Welding pressure | 5KG/F |
| XY axis travel | 750*350MM (Manual slide) | Welding pressure | 700*1200*1450MM |
| Driving mode | Electric | Machine Weight | 70KG |
| Power source specification | Single-phase 220V50/60HZ | Application scenarios | Battery welding
|
Function Introduction
1. Guide rail design
Double guide rail thickening design, the chassis is stable and
firm, not easy to deformation. The guide rail can move left and
right, and the welding head part is also equipped with a guide rail
design, which is suitable for large battery assembly and welding,
saving time and effort.
2. Electric precision welding head
Horizontal welding structure, double linear guide design left and
right pressure can be adjusted separately. Built-in pressure
sensor, precise control to apply stable pressure. The welding head
is equipped with a guide rail, which can move left and right for
easy welding.
3. Electric control
No additional air source, low noise, fast welding speed, stable
pressure.
FAQ
Q: What's your minimum order quantity?
A: We don't have a minimum order quantity. Whether it is an order
of 1 or 100, we will wholeheartedly support you.
Q: How do I install and run the machine?
A: Our technicians had installed the machine before shipment. For
the installation of some widgets, we will send out detailed
training videos and user manuals randomly. 95% of customers can
teach themselves.
Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery model and type.
2) Welding material and welding thickness
3) Commercial industry: We have a lot of sales experience and can
provide you with advice.
Q: How does your factory do in terms of quality control?
A: Quality comes first. More than 20 tests will be performed on
each unit. After all the tests are passed, our QC will test the
welding performance.
Q: How can I do if the machine goes wrong?
A: If you encounter such problems, please contact us as soon as
possible. Do not try to repair the machine by yourself or others.
We will respond as soon as possible within 24 hours to solve your
problem.
Service process
Pre-sale:
1. Customers send inquiries and inquiries
2. Recommend products according to customer needs
3. Video communication to confirm final requirements
4. Both parties shall deliver the confirmation of technical
specifications
5. Both parties sign the contract
6. Place orders and arrange production in the workshop
7. Arrange delivery
After sale:
1. Confirm whether customers need on-site service or video
communication guidance for debugging equipment.
2. If there is any problem with the equipment, video communication
will be adopted to solve the problem first. Door-to-door service
can be provided if there is no solution.
Looking forward to your consultation, we will provide you with the
best quality service throughout the process!!!
