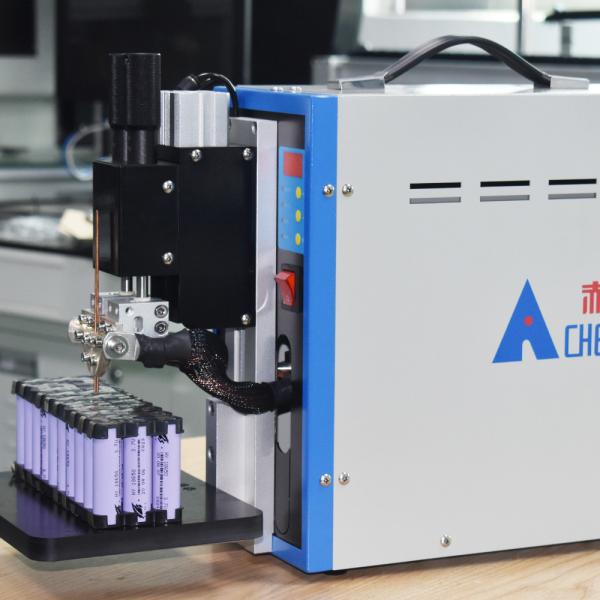

Mini Portable Battery Spot Welder Spot Welding Machine For Lithium
Ion Battery
Equipment introduction
● Adopting microcontroller control, it can realize single pulse,
multi-pulse and double-pulse welding.
● Using the proprietary output energy optimization algorithm, the
output voltage and output current are converted reasonably, with
strong welding capacity, firm welding joints, no miswelding, low
ignition and excellent surface quality.
● Independent welding needle, spring cushion design, precise
adjustment of welding pressure.
● The welding head platform can be adjusted up and down, which can
weld various specifications of batteries.
● Using CHEEBO's self-developed pneumatic precision welding head,
with precise pressure adjustment control.
● The digital LED display makes the adjustment of equipment
parameters more intuitive and easy to learn and operate.
● Micro-computer technology control, grid voltage control,
automatic tracking compensation.
● Portable lithium battery spot welder adopts integrated design,
space-saving and easy to carry.
● The welding machine can store several programs in advance, which
can be changed and called freely.
● Imported high-quality aluminum oxide copper electrode, pure
copper welding cable, pure copper electrode clamp and other
accessories, make the machine durable.
● Intelligent chip precision control, imported control chip,
microsecond corresponding chip integration process, small size, can
work for a long time, and stable operation.
● All parameters are digitally set, parameter adjustment is stable,
intuitive and accurate.
● Compact structure, small volume, high power, large industrial
circuit design, welding process is safe and reliable.
● This product is widely popular AC pulse spot welder, using
microcomputer single-chip computer control, stable and reliable
performance.
Industrial-grade welding equipment. Used for power lithium-ion
battery module welding, 3C lithium-ion battery pack welding,
nickel-metal hydride battery pack welding, hardware welding,
electrical and electronic parts welding, wire terminal welding,
stainless steel welding, metal jewelry welding, copper products
welding, aluminum products welding.
Technical specification
| Welding thickness | 0.04-0.2MM | Welding power supply | Multiple-pulse |
| Welding mode | Single side double point horizontal welding | Table top and weld head height | 150MM (Maximum pitch adjustable) |
| Supply current | 3200A | Welding speed | 200P/M |
| Spot welding method | Bump welding/tip welding | Welding pressure | 5KG/F |
| Equipment power | 12KW | Equipment size | 640*200*360MM |
| Driving mode | Pneumatic | Machine Weight | 60KG |
| Power source specification | Single-phase 220V50/60HZ | Application scenarios | Battery welding
|
Function Introduction
1. Welding table
Welding table can be adjusted up and down, loose the screw can be
adjusted, simple and convenient, suitable for a variety of
specifications of battery welding.

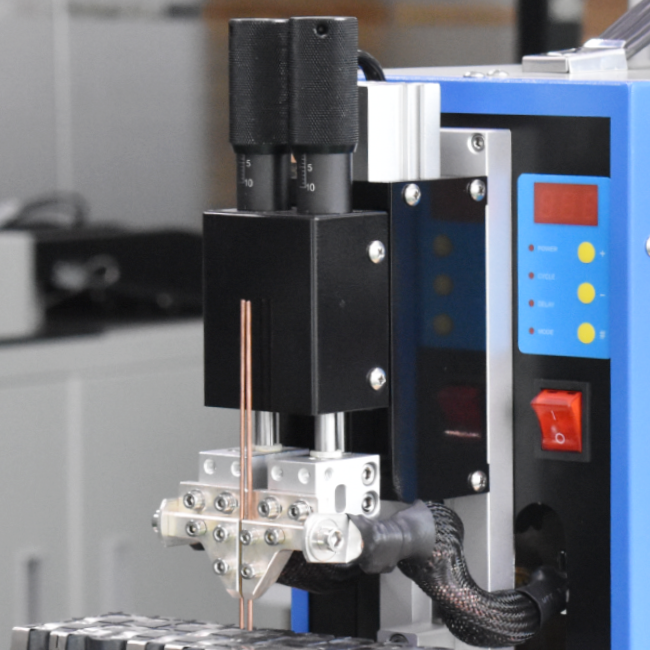

2. Pneumatic precision welding head
The left and right electrodes of the double point welding head are
pressed down simultaneously, which is precise and adjustable.
Flexible and rapid pressurization, with good pressure follow-up.
High machining accuracy and low electrode inertia. The built-in
pressure in place sensing device is connected to the welding
controller to ensure that each welding pressure meets the
requirements.
3. High quality cable
Pure copper cable, low resistance wire, high current carrying
capacity, thick enough, and non heating during welding.
Welding case
FAQ
Q: How do I install and run the machine?
A: Our technicians had installed the machine before shipment. For
the installation of some widgets, we will send out detailed
training videos and user manuals randomly. 95% of customers can
teach themselves.
Q: How can I do if the machine goes wrong?
A: If you encounter such problems, please contact us as soon as
possible. Do not try to repair the machine by yourself or others.
We will respond as soon as possible within 24 hours to solve your
problem.
Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery model and type.
2) Welding material and welding thickness
3) Commercial industry: We have a lot of sales experience and can
provide you with advice.
Q: What's your minimum order quantity?
A: We don't have a minimum order quantity. Whether it is an order
of 1 or 100, we will wholeheartedly support you.
Q: How does your factory do in terms of quality control?
A: Quality comes first. More than 20 tests will be performed on
each unit. After all the tests are passed, our QC will test the
welding performance.
Looking forward to your consultation, we will provide you with the
best quality service throughout the process!!!
