    18650 Cylinder Battery Tab Spot Welding Machine Electric Welding Motor Control

    Ask Lasest Price
    Brand Name : CHEEBO Technology
    Supply Ability : 50 Set/Sets per Week
    Price : NEGOTIABLE
    Model Number : CBLD-26
    Certification : CE certification
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    • Product Details
    • Company Profile

    18650 Cylinder Battery Tab Spot Welding Machine Electric Welding Motor Control

    18650 Cylinder Battery Tab Spot Welding Machine Electric Welding Motor Control


    Equipment introduction

    ● This lithium battery spot welding machine adopts a pure electric cylinder free design, with low noise and stable pressure.


    ● Motor driven, control box precision control, three adjustable modes.


    ● The CBLD-26 multi-pulse lithium battery spot welding machine adopts a proprietary output energy optimization algorithm, with reasonable conversion of output voltage and current, strong welding ability, firm solder joints, no false soldering, small ignition, and excellent surface quality.


    ● Independently developed precision welding heads with precise pressure regulation control.


    ● Microcomputer technology control, control of power grid voltage, automatic tracking and compensation.


    ● Applicable battery specifications: minimum not less than 50MM, maximum not greater than 130MM. (Can be used for elevated models)


    ● The welding platform adopts high-quality tempered glass to protect the desktop from wear and tear during the welding process.


    ● Vertical spot welding method is used for welding, and the pressure depth is manually controlled.


    ● Digital LED display, device parameter adjustment is more intuitive, easy to learn and operate.


    ● The welding machine can pre store multiple programs, which can be freely changed and called


    ● Compact structure, small size, high power, large industrial circuit design, safe and reliable welding process


    Technical specification

    Welding thickness0.02-0.18MMWelding power supplyMultiple-pulse
    Welding modeSingle side double point horizontal weldingTable top and weld head height130MM (Maximum pitch adjustable)
    Supply current3000AWelding speed180P/M
    Spot welding methodBump welding/tip weldingWelding pressure5KG/F
    Equipment power12KWEquipment size600*900*1300MM
    Driving modeElectricMachine Weight60KG
    Power source specificationSingle-phase 220V50/60HZApplication scenariosBattery welding

    Technical specification
    • Main technical parameters
    • Maximum distance between table top and welding head: 130MM
    • Welding stroke: 10MM
    • Manual up-down adjustment stroke: 50-130MM
    • Screw precision: 0.1MM
    • Spot welding pressure (head tracking system) : 5KG/F (adjustable)
    • Welding thickness: 0.04-0.18MM (depending on the quality of power grid and the quality of welding materials)
    • First pulse: Level 0-3 (adjustable)
    • Second pulse: Level 0-3 (adjustable)
    • First energy: 0-999 (adjustable)
    • Second energy: 0-999 (adjustable)
    • With welding needle: can be matched with a variety of specifications welding needle.
    • The whole machine adopts AC 220V voltage, easy to operate and adjust.
    • Power supply: Single-phase 220V 50/60HZ 2.8KW.
    • Air source specification: No air source required
    • Equipment weight: 60KG
    • Welding platform load: 60KG
    • Relocation accuracy: 0.1mm
    • Driving mode: electric precision welding head, dual shaft pressure following system
    • Welding speed: 180P/M (Max)
    Function Introduction

    Multipulse power supply

    Digital LED display, button adjustment is simple and convenient, yellow and green prompt light. Simple structure, small size, large power, industrial circuit design, safe and reliable welding process.

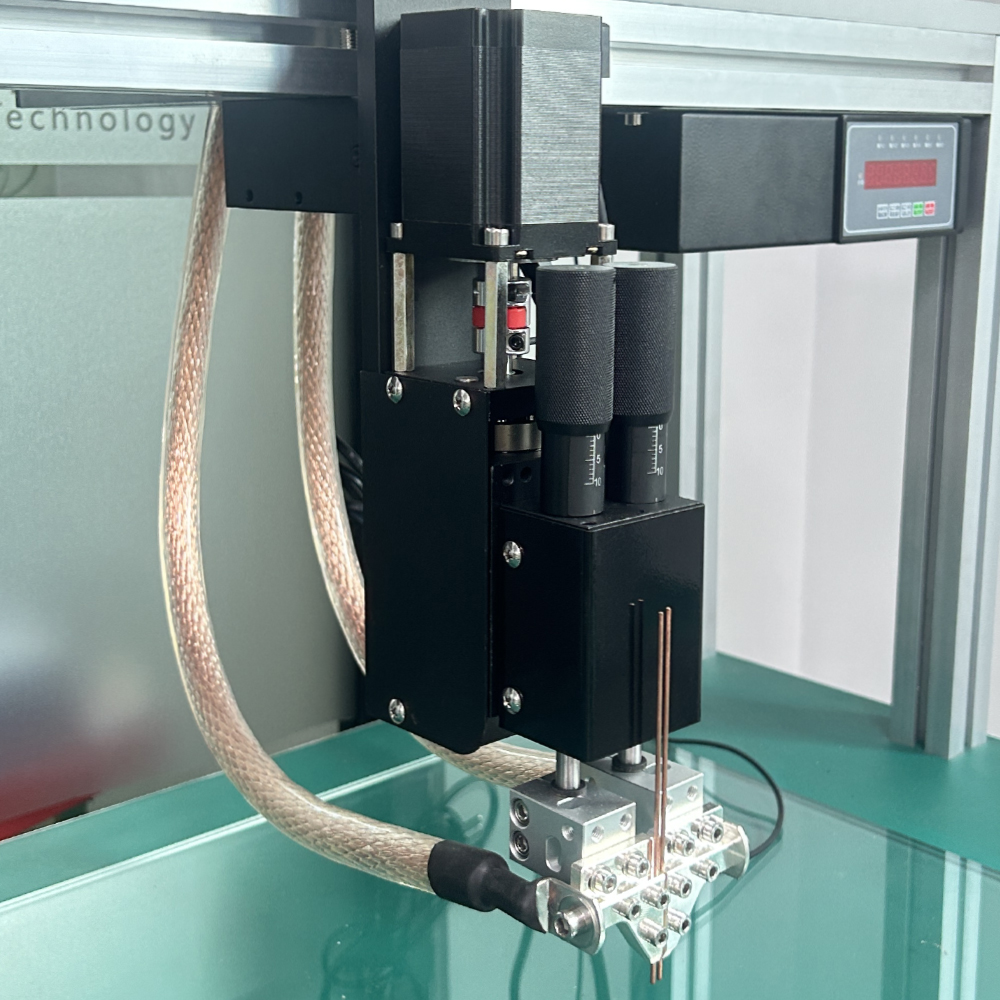

    Electric precision welding head

    Single-sided double-point horizontal welding, double linear guide design left and right pressure can be adjusted separately. Welding pressure can be adjusted according to the demand, precise control.


    Explosion-proof tempered glass

    High quality tempered glass protects the table top from abrasion during welding. Ensure smooth and smooth welding process.



    1. Welding case


    FAQ

    Q: What's your minimum order quantity?

    A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.


    Q: How do I install and run the machine?

    A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.


    Q: I don't know which one is right for me?

    A: Please tell us the following information

    1) Battery model and type.

    2) Welding material and welding thickness

    3) Commercial industry: We have a lot of sales experience and can provide you with advice.


    Q: How does your factory do in terms of quality control?

    A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.


    Q: How can I do if the machine goes wrong?

    A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.

    Service process
    Pre-sale:
    1. Customers send inquiries and inquiries
    2. Recommend products according to customer needs
    3. Video communication to confirm final requirements
    4. Both parties shall deliver the confirmation of technical specifications
    5. Both parties sign the contract
    6. Place orders and arrange production in the workshop
    7. Arrange delivery
    After sale:
    1. Confirm whether customers need on-site service or video communication guidance for debugging equipment.
    2. If there is any problem with the equipment, video communication will be adopted to solve the problem first. Door-to-door service can be provided if there is no solution.

    Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
