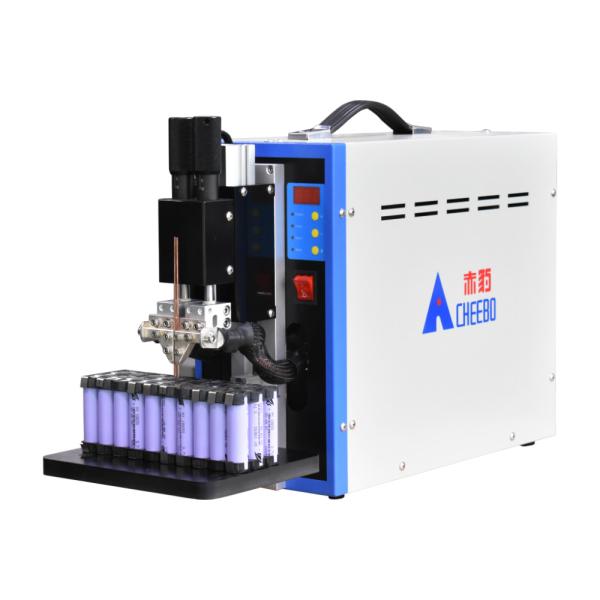

18650 Portable Battery Spot Welder 7W High Power Resistance Type
Portable battery welder equipment introduction
●Portable lithium battery spot welding machine adopts an integrated
design, which saves space and is convenient to carry.
●The welding machine can pre store multiple programs, which can be
freely changed and called.
●Controlled by a microcomputer microcontroller, it can achieve
single pulse, multi pulse, and double pulse welding methods.
●The lithium battery welding machine adopts a proprietary output
energy optimization algorithm, with reasonable conversion of output
voltage and output current, strong welding ability, firm solder
joints, no false welding, low ignition, and excellent surface
quality.
● Independent welding needle, spring buffering design, and precise
adjustment of welding pressure.
● Imported high-quality aluminum oxide copper electrodes, pure
copper welding cables, pure copper electrode clamps and other
accessories make the machine durable and durable.
● The welding head platform can be adjusted up and down, and can be
welded to various specifications of batteries.
● The battery pack micro welding machine adopts a pneumatic
precision welding head independently developed by Qibo, with
precise pressure regulation control.
● Digital LED display, device parameter adjustment is more
intuitive, easy to learn and operate.
● Microcomputer technology control, control of power grid voltage,
automatic tracking and compensation.
● Intelligent chip precision control, imported control chip,
microsecond level corresponding chip integration process, small
size, can work for a long time, and runs stably.
● All parameters are set digitally, and parameter adjustments are
stable, intuitive, and accurate.
● The vertical spot welding method is spot welding, and the
pressure depth is manually controlled.
● Compact structure, small size, high power, large industrial
circuit design, safe and reliable welding process.
Lithium battery welder technical specification
| Welding thickness | 0.04-0.2MM | Welding power supply | Multiple-pulse |
| Welding mode | Single side double point horizontal welding | Table top and weld head height | 150MM (Maximum pitch adjustable) |
| Supply current | 3200A | Welding speed | 200P/M |
| Spot welding method | Bump welding/tip welding | Welding pressure | 5KG/F |
| Equipment power | 12KW | Equipment size | 640*200*360MM |
| Driving mode | Pneumatic | Machine Weight | 60KG |
| Power source specification | Single-phase 220V50/60HZ | Application scenarios | Battery welding
|
Portable lithium battery welder function Introduction
1. Pneumatic precision welding head
The left and right electrodes of the double point welding head are
pressed down simultaneously, which is precise and adjustable.
Flexible and rapid pressurization, with good pressure follow-up.
High machining accuracy and low electrode inertia. The built-in
pressure in place sensing device is connected to the welding
controller to ensure that each welding pressure meets the
requirements.
2. Pressure regulation
The welding head pressure is adjustable from 1-10KG to ensure good
welding results of different thicknesses and materials.
3. Operation panel
LED digital display. "+", "-" to adjust the data. "#" switch to
adjust the data. Data adjustment is simple and convenient.
One-click switch button.
Debugging project
1. Welding pressure: 1-10 kg
2. Welding energy adjustment: "+" to increase energy, "-" to reduce
energy, "#" to switch parameters
3. Air pressure regulation
4. Adjustment of needle extension length
5. Adjust the position under the table top
6. Adjust the spacing between the left and right pins
Welding case
FAQ
Q: What's your minimum order quantity?
A: We don't have a minimum order quantity. Whether it is an order
of 1 or 100, we will wholeheartedly support you.
Q: How do I install and run the machine?
A: Our technicians had installed the machine before shipment. For
the installation of some widgets, we will send out detailed
training videos and user manuals randomly. 95% of customers can
teach themselves.
Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery model and type.
2) Welding material and welding thickness
3) Commercial industry: We have a lot of sales experience and can
provide you with advice.
Q: How does your factory do in terms of quality control?
A: Quality comes first. More than 20 tests will be performed on
each unit. After all the tests are passed, our QC will test the
welding performance.
Q: How can I do if the machine goes wrong?
A: If you encounter such problems, please contact us as soon as
possible. Do not try to repair the machine by yourself or others.
We will respond as soon as possible within 24 hours to solve your
problem.
Service process
Pre-sale:
1. Customers send inquiries and inquiries
2. Recommend products according to customer needs
3. Video communication to confirm final requirements
4. Both parties shall deliver the confirmation of technical
specifications
5. Both parties sign the contract
6. Place orders and arrange production in the workshop
7. Arrange delivery
After sale:
1. Confirm whether customers need on-site service or video
communication guidance for debugging equipment.
2. If there is any problem with the equipment, video communication
will be adopted to solve the problem first. Door-to-door service
can be provided if there is no solution.
Looking forward to your consultation, we will provide you with the
best quality service throughout the process!!!
