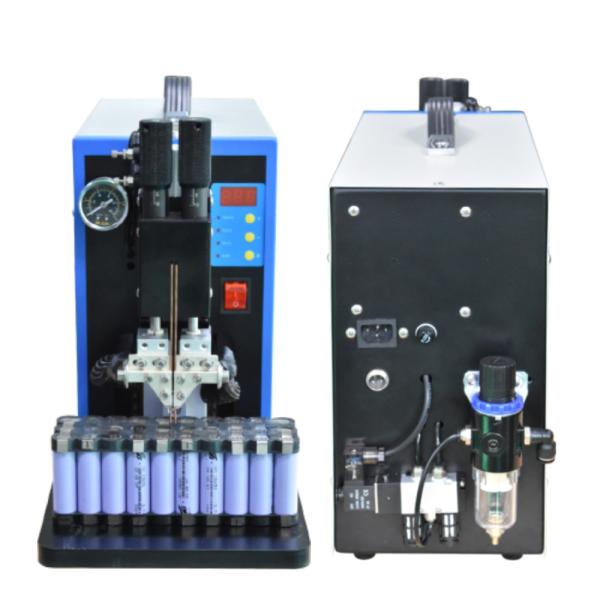

Industrial Grade High Quality Mini 21700 Battery Pack Spot Welding
Machine
Equipment introduction
● Portable lithium battery spot welding machine adopts integrated
design, saving space and easy to carry.
● The battery pack micro welding machine adopts the pneumatic
precision welding head independently developed by Qibo, with
accurate pressure regulation control.
● Lithium battery welder adopts proprietary output energy
optimization algorithm, reasonable output voltage and output
current conversion, strong welding ability, solid solder joint, no
false welding, small cremation, excellent surface quality.
● Imported high-quality aluminum oxide copper electrode, pure
copper welding cable, pure copper electrode clamp and other
accessories, make the machine durable.
● The welding head platform can be adjusted up and down, and can be
welded with various specifications of batteries.
● Microcomputer technology control, control grid voltage, automatic
tracking compensation.
● All parameters are set digitally, and parameter adjustment is
stable, intuitive and accurate.
● The vertical spot welding method is spot welding, and the
pressure depth is controlled manually.
● Digital LED display, equipment parameter adjustment is more
intuitive, easy to learn and operate.
● The welder can prestore multiple programs, which can be freely
changed and called.
● Compact structure, small size, high power, large industrial
circuit design, safe and reliable welding process.
Technical specification
| Welding thickness | 0.04-0.2MM | Welding power supply | Multiple-pulse |
| Welding mode | Single side double point horizontal welding | Table top and weld head height | 150MM (Maximum pitch adjustable) |
| Supply current | 3200A | Welding speed | 200P/M |
| Spot welding method | Bump welding/tip welding | Welding pressure | 5KG/F |
| Equipment power | 12KW | Equipment size | 640*200*360MM |
| Driving mode | Pneumatic | Machine Weight | 60KG |
| Power source specification | Single-phase 220V50/60HZ | Application scenarios | Battery welding
|
Applicable scope
Power lithium-ion battery module assembly and welding, 3C
lithium-ion battery pack welding and assembly, nickel-metal hydride
battery pack spot
welding, hardware welding, electrical and electronic parts welding,
wire terminal welding, stainless steel welding, metal jewelry
welding, copper
products welding, aluminum products welding.
Function Introduction
1. Pneumatic precision welding head
Horizontal welding structure, double linear guide design, left and
right pressure can be adjusted separately. Built-in pressure
sensor, precise control to apply stable pressure.
2. Pressure regulation
The welding head pressure is adjustable from 1-10KG to ensure good
welding results of different thicknesses and materials.
3. Operating table
Upper and lower height adjustable table, simple and easy to
operate, suitable for a variety of specifications of batteries.
Equipment workflow
Power on -- Adjust parameters -- Place the installed battery pack
on the workbench -- step on the pedal -- the welding head starts to
move -- spot
welding is completed -- the welding head returns
1. the welding machine in the parameter setting state do not turn
off the power, the wrong turn off the power may cause the setting
parameters can not be saved or the parameter error.
2. The power supply should be turned off when the welding machine
stops working. If you do not work for a long time, unplug the power
plug and compressed air plug.
3. try to ensure that the electrode is clean and smooth. When the
oxide layer appears on the electrode working surface, the surface
oxide layer should be removed by sandpaper and other tools.
4. Keep enough lubricating oil in the oil mist. When there is
little lubricating oil, lubricating oil can be added from the
refueling hole. ISO VG32 or equivalent lubricants are recommended.
FAQ
Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery model and type.
2) Welding material and welding thickness
3) Commercial industry: We have a lot of sales experience and can
provide you with advice.
Q: How do I install and run the machine?
A: Our technicians had installed the machine before shipment. For
the installation of some widgets, we will send out detailed
training videos and user manuals randomly. 95% of customers can
teach themselves.
Q: What's your minimum order quantity?
A: We don't have a minimum order quantity. Whether it is an order
of 1 or 100, we will wholeheartedly support you.
Q: How does your factory do in terms of quality control?
A: Quality comes first. More than 20 tests will be performed on
each unit. After all the tests are passed, our QC will test the
welding performance.
Q: How can I do if the machine goes wrong?
A: If you encounter such problems, please contact us as soon as
possible. Do not try to repair the machine by yourself or others.
We will respond as soon as possible within 24 hours to solve your
problem.
Looking forward to your consultation, we will provide you with the
best quality service throughout the process!!!
