Automatic Lithium Battery Sort 18650 Battery Cell Sorting Machine
Equipment introduction
● CBFXH-10 multifunctional cylindrical battery testing and sorting
machine is an automatic sorting equipment suitable for voltage and
internal resistance testing of various specifications of
cylindrical cells.
● Applicable battery cell models:
18650/21700/26650/26700/32650/32700, etc
● Complete the sorting of more than 4000 cylindrical finished cells
per hour.
● Easy to operate interface with one click generation function.
Simply input the starting voltage internal resistance and
corresponding interval to complete parameter setting.
● Equipped with manual parameter modification function, it can be
fine-tuned for each gear position or adjusted with one click
modification function.
● Adopting a 10+1 gear design, there are a total of 11 gears. 10
good product positions, with 1 NG slot independently set at the
rear end.
● Adopting PLC+upper computer control mode, the upper computer
records and displays sorting data in real-time, and the sorting
data can be saved and exported.
● Adopting Mitsubishi PLC+imported Panasonic servo control unit+4
probe design. The mechanical structure design is simple and
generous, and the system performance is stable.
● Adopting a 19 inch integrated industrial grade computer, real-time
display of sorting data, and simple and convenient human-computer
interaction.
● Fault information reminder function, fault sound and light alarm,
can quickly diagnose faults.
● Aluminum alloy structure, electrostatic powder spraying process,
scratch resistance, rust prevention, and anti-static.
Technical specification
| Production efficiency | 50-70PPM | Air source specification | 1/CFM |
| Applicable battery specifications | Diameter: 18-32; Length: 65-70 | Transmission mode | belt transmission |
| Sort the gears | 10+1 | Product loss rate | 0 |
| SBM Series | HIOKI3561/HOPE350 | Frame material | Aluminium alloy |
| Voltage accuracy | 0.1% (according to the internal resistance meter) | Machine Dimensions | 1390*820*1360MM |
| Internal resistance accuracy | 0.5%(depending on internal resistance meter) | Machine Weight | 220KG |
| Power source specification | Single-phase 220V50/60HZ | Application scenarios | Cylindrical battery sorting |
Function Introduction
1. Operating interface
Using 19 inch touch screen integrated industrial computer, i3
processor, processing data faster. Setting the gear parameters is
simple and quick. 19 "large screen real-time display of sorting
data, output, each cell test parameters accurate record, sorting
data can be exported.
2. Baffleless design
No baffle design, smooth operation, no lag.The sorting state of the
cell at the arrival position is clearly visible.
3. Loading mechanism
Humanized design, easy to fill the whole box. Large hopper, one
time can put 400PCS18650 cells.

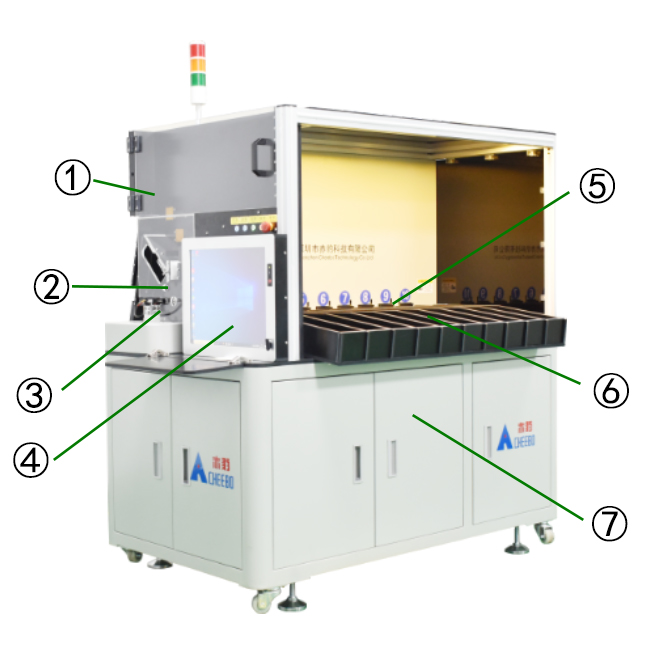

Equipment analysis diagram
| 1. Battery charging hopper | 2. Battery type wave wheel replacement area |
| 3. 4 Probe head design | 4. Integrated industrial computer touch screen |
| 5. Flexible belt transmission | 6. 10+1 channel |
| 7. Panasonic servo motor | |
Device action flow description
Place the battery into the silo - Test wheel runs to the testing
position - Test cylinder action - Test needle presses onto the
battery - Tester reads
data - Transfer to computer - Computer performs gear matching -
Battery turns to sorting belt - Sorting belt runs to the specified
gear - Gear
cylinder action pushes the battery out
FAQ
Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery type?
2) Which battery models do you want to be compatible with?
3) How many gears do you need?
Q: How do I install and run the machine?
A: Our technicians had installed the machine before shipment. For
the installation of some widgets, we will send out detailed
training videos and user manuals randomly. 95% of customers can
teach themselves.
Q: What's your minimum order quantity?
A: We don't have a minimum order quantity. Whether it is an order
of 1 or 100, we will wholeheartedly support you.
Q: How does your factory do in terms of quality control?
A: Quality comes first. More than 20 tests will be performed on
each unit. After all the tests are passed, our QC will test the
welding performance.
Q: How can I do if the machine goes wrong?
A: If you encounter such problems, please contact us as soon as
possible. Do not try to repair the machine by yourself or others.
We will respond as soon as possible within 24 hours to solve your
problem.
