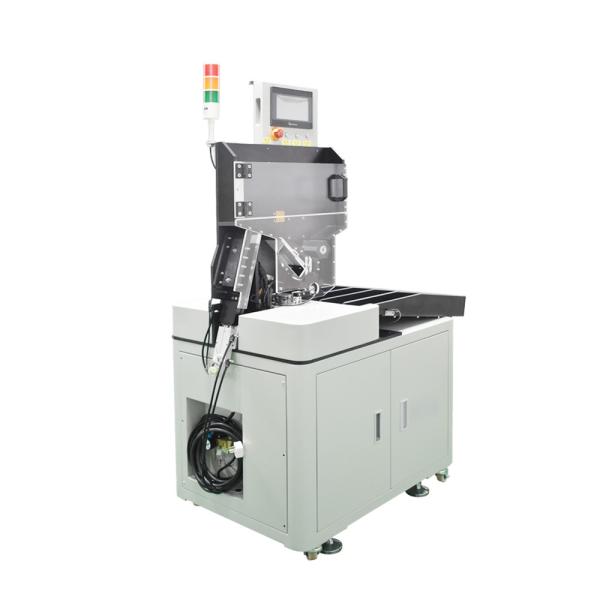

5 Channel Voltage Internal Resistance Test Battery Sorter Battery
Equipment
Equipment introduction
● This type of cell sorting machine is suitable for automatic
sorting equipment of voltage and internal resistance test of
cylindrical cell of various specifications.
● The suitable batteries model: 18650/21700/26650/26700/32650/32700
models.
● The number of finished cylindrical cells is more than 4000 units
per hour.
● Easy to operate interface, with one-key generation function, only
need the initial voltage resistance, input the corresponding
interval, you can complete the parameter setting.
● Using PLC+ host computer control mode, host computer records and
displays sorting data in real time.
● Fault information reminder function, fault sound and light alarm,
can quickly diagnose faults.
● It comes with manual parameter modification function, which can be
fine-tuned for each gear, or adjusted using the one-click
modification function.
● Mitsubishi PLC+ imported Panasonic servo control unit +4 probe
design, high-end configuration, stable performance, long service
life and low failure rate.
● Using HD touch screen computer, human-computer interaction is
simple and convenient.
●Reserve the interface to connect to the paper machine, which can be
used to connect to the paper machine, saving labor costs.
● Sorting gear slope design, open gate, easy to receive materials,
improve production efficiency.
● Aluminum alloy structure, electrostatic powder spraying process,
scratch resistance, rust prevention, anti-static.
Technical specification
| Production efficiency | 50-70PPM | Air source specification | 1/CFM |
| Applicable battery specifications | Diameter: 18-32; Length: 65-70 | Transmission mode | belt transmission |
| Sort the gears | 4+1 | Product loss rate | 0 |
| SBM Series | HIOKI3561/HOPE350 | Frame material | Aluminium alloy |
| Voltage accuracy | 0.1% (according to the internal resistance meter) | Machine Dimensions | 1600*600*1650MM |
| Internal resistance accuracy | 0.5%(depending on internal resistance meter) | Machine Weight | 220KG |
| Power source specification | Single-phase 220V50/60HZ | Application scenarios | Cylindrical battery sorting |
Function Introduction
1. Inspection and testing organization
4 Probe design, positive and negative electrode detection at the
same time, with brand internal resistance meter, more accurate test
data.
According to the test parameters, the upper computer analyzes the
data and sorts the cells to the designated channel.
2. Italic design
The ten grades all adopt italic design, open gate, simple and
convenient material receiving, saving time and labor, and
effectively improving production efficiency.
3. Loading mechanism
Humanized design, easy to fill the whole box. Large container , one
time can put 200PCS18650 battery cells.
Device action flow description
The battery cell is put into the bin -- the test wheel runs to the
test position -- the test cylinder moves -- the test needle presses
to the battery cell --
the tester reads the data -- transfers to the computer -- the
computer matches the gear -- the battery cell is transferred to the
sorting belt -- the
sorting belt runs to the specified gear -- the gear cylinder moves
to push the battery cell out
Debugging project
- Sorting data Settings
- The sorting template is generated
- Idle times setting
- Compensation value setting
- Monitor voltage internal resistance
- Test pin change
FAQ
Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery type?
2) Which battery models do you want to be compatible with?
3) How many gears do you need?
Q: How do I install and run the machine?
A: Our technicians had installed the machine before shipment. For
the installation of some widgets, we will send out detailed
training videos and user manuals randomly. 95% of customers can
teach themselves.
Q: What's your minimum order quantity?
A: We don't have a minimum order quantity. Whether it is an order
of 1 or 100, we will wholeheartedly support you.
Q: How does your factory do in terms of quality control?
A: Quality comes first. More than 20 tests will be performed on
each unit. After all the tests are passed, our QC will test the
welding performance.
Q: How can I do if the machine goes wrong?
A: If you encounter such problems, please contact us as soon as
possible. Do not try to repair the machine by yourself or others.
We will respond as soon as possible within 24 hours to solve your
problem.
