Lithium Battery Pack Line Machine Cylindrical Cell Pack Assembly
Equipment

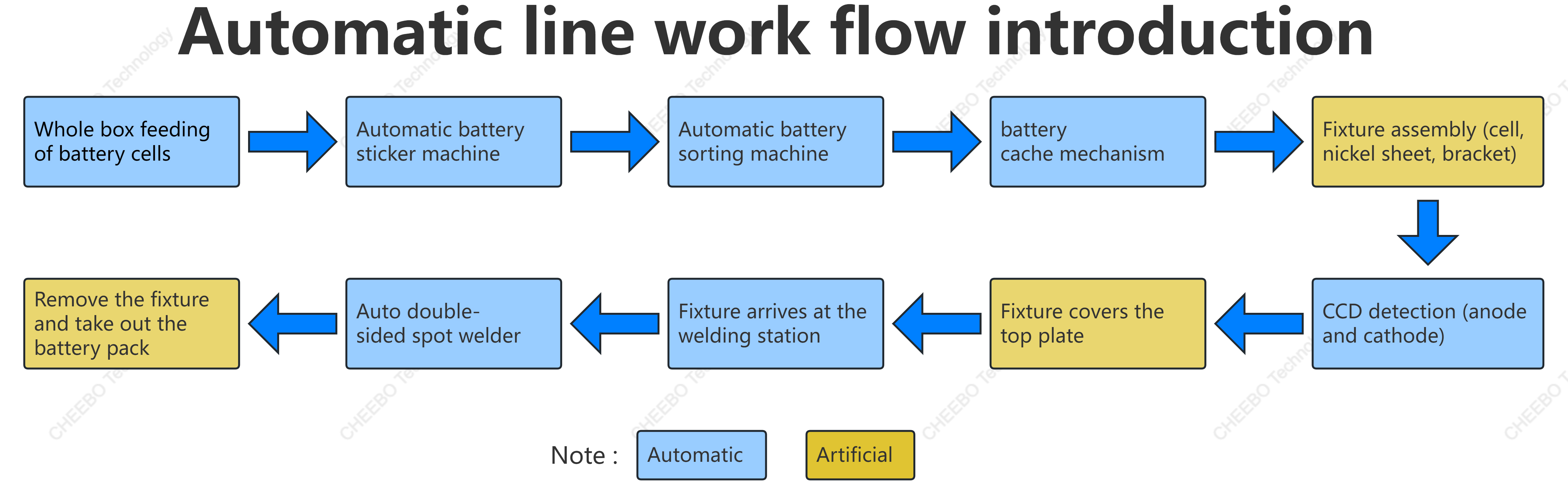

Battery pack assembly line equipment introduction
1. Suitable for batteries: The entire production line is suitable
for 18650 21650 21700 26650 32650 32700 cylindrical steel shell
batteries (CCD and double-sided 8-axis automatic spot welding
machine parts can be used for 33140 resistance welding batteries).
2. Whole box battery power supply saves manpower and time.
3. The overall design of the production line body, the forward
design of the battery charging mechanism, is easy to operate and
has a beautiful overall appearance.
The installation and release of sorting units are directly unloaded
to the unit operator station, saving manpower and time.
5. The core workbench and wire body of the human body fixture are
designed as one, making it easy to operate.
6. CCD automatically senses incoming and outgoing work, intervenes
automatically during normal operation, and manually handles product
abnormalities.
7. The eight axis double-sided automatic spot welding machine can
perform spot welding on slotted batteries in different directions.
8. Place the spot welding machine at the end of the belt line of
the production line, so that the end of the production line is
integrated with the production line.
9. The fixture reflux mechanism is designed smoothly, easy to
operate and use, and does not occupy space. 10. Production can be
customized according to demand
Battery pack assembly technical specification
| Compatible cell models | 18650/21700/32700/26650/32650, etc Cylindrical cell |
| Dimensions | Dimensions |
| Line color | Ivory white(Customizable) |
| Total power | 220V 50/60Hz 6KW |
| Use air pressure | 0.5-0.8Mpa |
| Production efficiency | 3000PCS/H(Automatic part) |
| CCD lens pixel | 2000W |
| CCD detection field | 380*500MM(Max) |
| Spot welder welding stroke | 500*360MM(Max) |
| Cell sorting channels | 6+1 |
| Nickel sheet welding thickness | 0.02-0.3MM |
| Number of stickers (Each time) | 4PCS(Depends on cell type) |
| User interface | Touch screen |
| Manpower required | 3-5 people |
Battery pack assembly applicable product type
Power tool battery pack, energy storage battery pack, electric
vehicle battery pack (including but not limited to)
